PRO-IS-587

Active

Abracon LLC

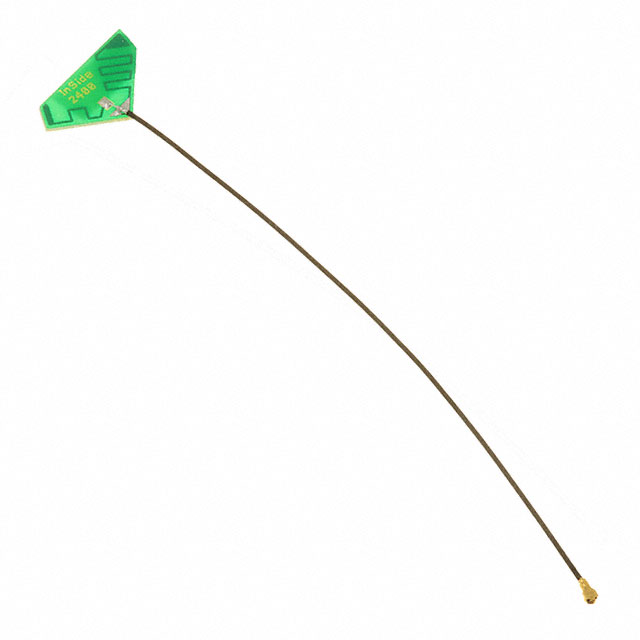

INSIDE 2400 TRIANGULAR 10CM MHF4

Search across all available documentation for this part.

Active

Abracon LLC

INSIDE 2400 TRIANGULAR 10CM MHF4

Technical Specifications

Parameters and characteristics for this part

Part	Features	Features	Termination	Number of Bands	Gain	Frequency Range [Max]	Frequency Range [Min]	Return Loss	Mounting Type	Applications	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Frequency (Center/Band)	Antenna Type	VSWR	Height (Max)	Frequency Group	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Power - Max [Max]
Abracon LLC PRO-IS-590	Cable	100 mm	IPEX MHF4	2	5.5 dBi	2.17 GHz 960 MHz	1.71 GHz 791 MHz	-6 dB	Adhesive	EDGE GPRS GSM LTE UMTS	0.005 in	0.13 mm	Cellular	1.94 GHz 875.5 MHz	PCB Trace
Abracon LLC PRO-IS-583	Cable	100 mm	IPEX MHF4	2	3 dBi	1.99 GHz 960 MHz	1.71 GHz 868 MHz		Adhesive	GSM	0.031 in		Cellular	1.85 GHz 914 MHz	PCB Trace	4	0.8 mm
Abracon LLC PRO-IS-577	Cable	100 mm	IPEX MHF1 U.FL (UMCC)	2	5.5 dBi	2.17 GHz 960 MHz	1.71 GHz 791 MHz	-6 dB	Adhesive	GSM	0.005 in	0.13 mm	Cellular	1.94 GHz 875.5 MHz	PCB Trace			Wide Band
Abracon LLC PRO-IS-432	Cable	100 mm	IPEX MHF1 U.FL (UMCC)	2	3 dBi	2.485 GHz 5.875 GHz	2.4 GHz 5.18 GHz		Adhesive	WLAN			WiFi	2.4 GHz 5.5 GHz	PCB Trace				1 mm	0.039 in	4 GHz	2 GHz	3 GHz	3 W
Abracon LLC PRO-IS-578	Cable	100 mm	IPEX MHF4	2	3 dBi	2.485 GHz 5.875 GHz	2.4 GHz 5.15 GHz		Adhesive	Bluetooth ISM WLAN Zigbee™				2.4425 GHz 5.5125 GHz	PCB Trace	3			1 mm	0.039 in	4 GHz	2 GHz	3 GHz
Abracon LLC PRO-IS-587	Cable	100 mm	IPEX MHF4	1	3 dBi	2.485 GHz	2.4 GHz		Adhesive	ISM			General ISM	2.4425 GHz	PCB Trace	2			1 mm	0.039 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.4425GHz ISM PCB Trace RF Antenna 2.4GHz ~ 2.485GHz 3dBi IPEX MHF4 Adhesive

Technical documentation and resources
