OSTOQ025551

Active

On Shore Technology Inc.

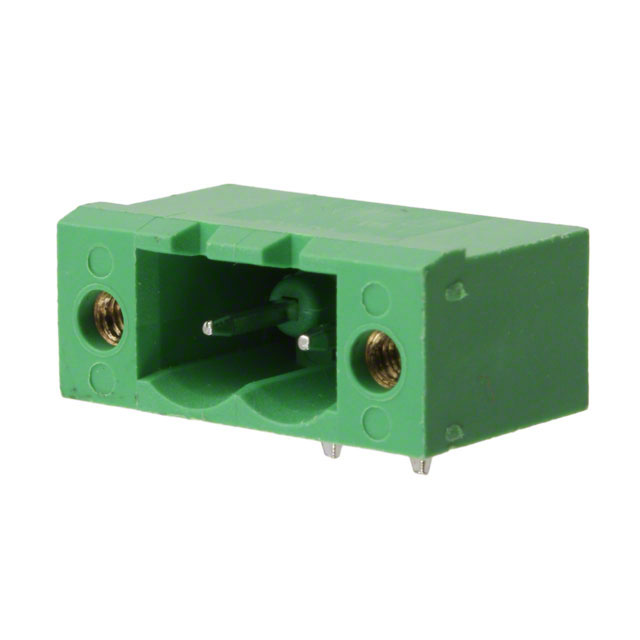

TERM BLOCK HDR 2POS 90DEG 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ025551

Active

On Shore Technology Inc.

TERM BLOCK HDR 2POS 90DEG 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ025551

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Features	Mating Flange
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Solder
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	2
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ02 Series

Part	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Positions Per Level	Header Orientation	Mounting Type	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Pitch [x]	Pitch [x]	Voltage - UL	Type	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Features
On Shore Technology Inc. OSTOQ025451	1	-40 °C	115 °C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ020051	1	-30 ░C	105 ░C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.3 in	7.62 mm	300 V	Header Male Pins Shrouded (2 Side)	Brass
On Shore Technology Inc. OSTOQ025450	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.157 in	4 mm			2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass	0.472 in	12 mm
On Shore Technology Inc. OSTOQ027051	1	-30 ░C	105 ░C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.197 in	5 mm	300 V	Header Male Pins Shrouded (2 Side)	Brass
On Shore Technology Inc. OSTOQ021551	1	-30 ░C	105 ░C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.138 in	3.5 mm			2	0.138 in	3.5 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass	0.138 in	3.5 mm	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ027150	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.197 in	5 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass
On Shore Technology Inc. OSTOQ025350	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (2 Side)	Brass
On Shore Technology Inc. OSTOQ021550	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.138 in	3.5 mm			2	0.138 in	3.5 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass	0.138 in	3.5 mm	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ025551	1	-30 ░C	105 ░C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass			UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ025550	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass			UL94 V-0	Mating Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.56
		10	$ 0.87
		25	$ 0.74
		50	$ 0.66
		100	$ 0.61
		250	$ 0.55
		500	$ 0.52
		1000	$ 0.50
		5000	$ 0.47

Description

General part information

OSTOQ02 Series

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Solder
