OSTOQ025450

Active

On Shore Technology Inc.

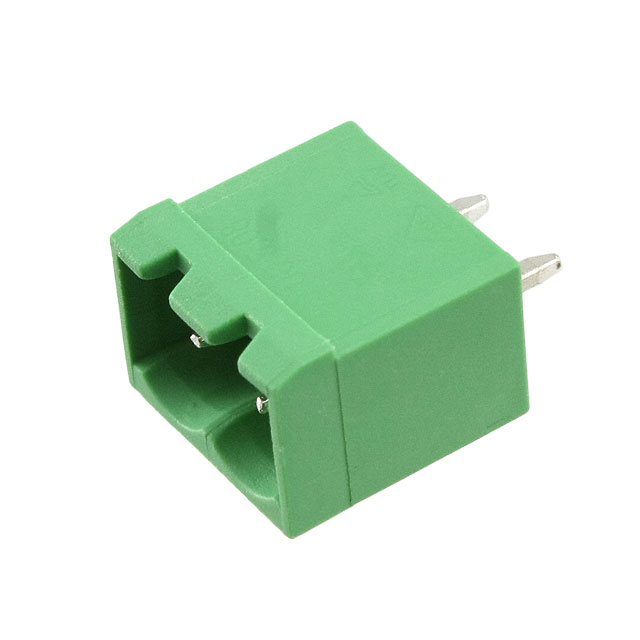

TERM BLOCK HDR 2POS VERT 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ025450

Active

On Shore Technology Inc.

TERM BLOCK HDR 2POS VERT 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ025450

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Header Orientation	Vertical
Housing Material	Thermoplastic
Insulation Height	0.472 in
Insulation Height	12 mm
Mounting Type	Solder
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	2
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ02 Series

Part	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Positions Per Level	Header Orientation	Mounting Type	Contact Mating Finish	Contact Tail Length	Contact Tail Length	Insulation Height [custom]	Insulation Height [custom]	Number of Positions	Pitch [x]	Pitch [x]	Voltage - UL	Type	Contact Material	Insulation Height	Insulation Height	Material Flammability Rating	Features
On Shore Technology Inc. OSTOQ025451	1	-40 °C	115 °C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (4 Side)
On Shore Technology Inc. OSTOQ020051	1	-30 ░C	105 ░C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.3 in	7.62 mm	300 V	Header Male Pins Shrouded (2 Side)	Brass
On Shore Technology Inc. OSTOQ025450	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.157 in	4 mm			2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass	0.472 in	12 mm
On Shore Technology Inc. OSTOQ027051	1	-30 ░C	105 ░C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.197 in	5 mm	300 V	Header Male Pins Shrouded (2 Side)	Brass
On Shore Technology Inc. OSTOQ021551	1	-30 ░C	105 ░C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.138 in	3.5 mm			2	0.138 in	3.5 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass	0.138 in	3.5 mm	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ027150	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.197 in	5 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass
On Shore Technology Inc. OSTOQ025350	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (2 Side)	Brass
On Shore Technology Inc. OSTOQ021550	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.138 in	3.5 mm			2	0.138 in	3.5 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass	0.138 in	3.5 mm	UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ025551	1	-30 ░C	105 ░C	Thermoplastic	2	90° Right Angle	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass			UL94 V-0	Mating Flange
On Shore Technology Inc. OSTOQ025550	1	-30 ░C	105 ░C	Thermoplastic	2	Vertical	Solder	Tin	0.157 in	4 mm	0.157 in	4 mm	2	0.2 in	5.08 mm	300 V	Header Male Pins Shrouded (4 Side)	Brass			UL94 V-0	Mating Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.71
		10	$ 0.34
		25	$ 0.26
		50	$ 0.22
		100	$ 0.19
		250	$ 0.17
		500	$ 0.15
		1000	$ 0.14
		5000	$ 0.12

Description

General part information

OSTOQ02 Series

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Solder
