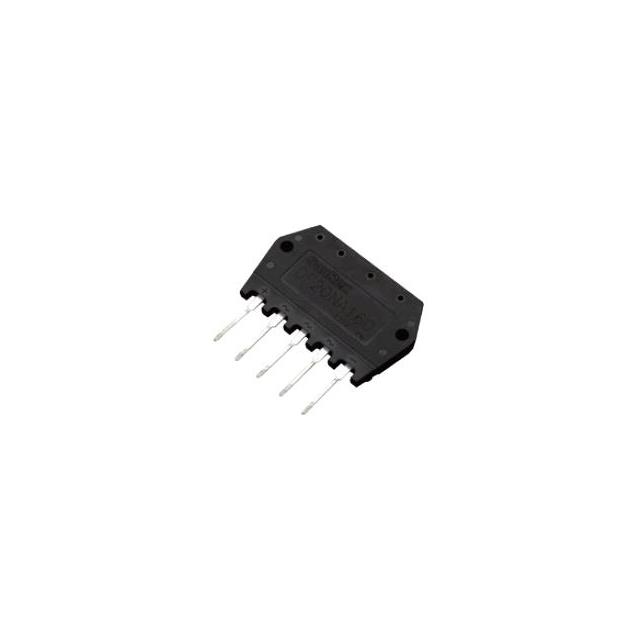

DF30NA80S

Active

SanRex Corporation

DIOE MODULE 800V 30A

Search across all available documentation for this part.

Active

SanRex Corporation

DIOE MODULE 800V 30A

Technical Specifications

Parameters and characteristics for this part

Specification	DF30NA80S

Current - Average Rectified (Io)	30 A
Diode Type	Three Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-SIP Exposed Pad
Supplier Device Package	5-SIP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If [Max]	1.2 V
Voltage - Peak Reverse (Max) [Max]	800 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Diode Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Technology	Voltage - Peak Reverse (Max)	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
SanRex Corporation DF30NA160F1	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard	1.6 kV	5-SIP	14 mA
SanRex Corporation DF30AA120	150 °C	-40 °C	Chassis Mount	Three Phase	30 A		Module	Standard			3 mA	1.2 kV	1.3 V
SanRex Corporation DF30NA80F1	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard		5-SIP		800 V
SanRex Corporation DF30NA80S	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard		5-SIP		800 V
SanRex Corporation DF30NA160S	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard	1.6 kV	5-SIP	14 mA
SanRex Corporation DF30AA160	150 °C	-40 °C	Chassis Mount	Three Phase	30 A		Module	Standard	1.6 kV		3 mA		1.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	77	$ 11.19

General part information

Bridge Rectifier Three Phase Standard 800 V Through Hole 5-SIP
