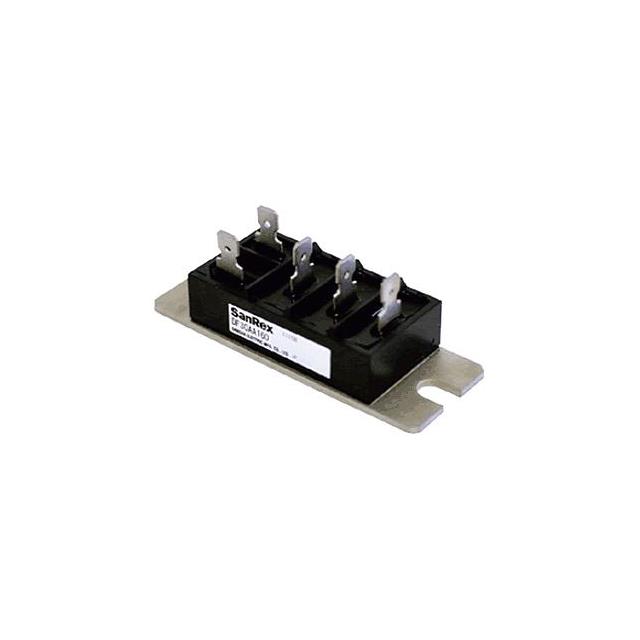

DF30AA120

Active

SanRex Corporation

DIOE MODULE 1200V 30A

Search across all available documentation for this part.

Active

SanRex Corporation

DIOE MODULE 1200V 30A

Technical Specifications

Parameters and characteristics for this part

Specification	DF30AA120

Current - Average Rectified (Io)	30 A
Current - Reverse Leakage @ Vr	3 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Diode Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Technology	Voltage - Peak Reverse (Max)	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
SanRex Corporation DF30NA160F1	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard	1.6 kV	5-SIP	14 mA
SanRex Corporation DF30AA120	150 °C	-40 °C	Chassis Mount	Three Phase	30 A		Module	Standard			3 mA	1.2 kV	1.3 V
SanRex Corporation DF30NA80F1	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard		5-SIP		800 V
SanRex Corporation DF30NA80S	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard		5-SIP		800 V
SanRex Corporation DF30NA160S	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard	1.6 kV	5-SIP	14 mA
SanRex Corporation DF30AA160	150 °C	-40 °C	Chassis Mount	Three Phase	30 A		Module	Standard	1.6 kV		3 mA		1.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	29	$ 27.84

General part information

Bridge Rectifier Three Phase Standard 1.2 kV Chassis Mount
