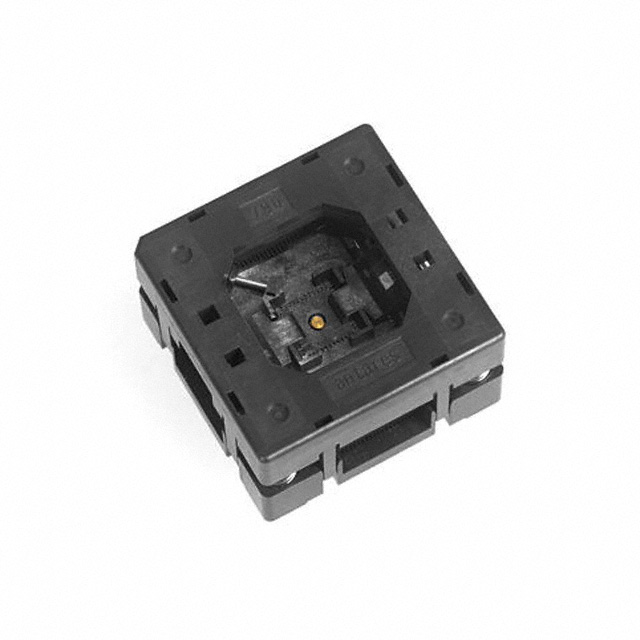

228-5204-01

Active

3M (TC)

IC & COMPONENT SOCKET, 28 CONTACTS, QFN TEST SOCKET, 0.5 MM, 228 SERIES, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

228-5204-01

Active

3M (TC)

IC & COMPONENT SOCKET, 28 CONTACTS, QFN TEST SOCKET, 0.5 MM, 228 SERIES, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	228-5204-01

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Contact Resistance	25 mOhm
Housing Material	Polyethersulfone (PES)
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	28
Number of Positions or Pins (Grid) [custom]	4
Number of Positions or Pins (Grid) [custom]	7
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Termination	Solder
Termination Post Length	0.118 in
Termination Post Length	3 mm
Type	QFN

228 Series

Part	Termination	Termination Post Length	Termination Post Length	Mounting Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Post	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Material Flammability Rating	Number of Pins	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Pitch - Post	Pitch - Post	Housing Material	Contact Finish - Post	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Resistance	Type	Type	Type	Number of Positions or Pins (Grid)	Features	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Type
3M (TC) 228-1277-09-0602J	Solder	3.3 mm	0.13 in	Through Hole	1 A	30 Áin	0.76 Ám	Beryllium Copper	0.6 in	DIP	15.24 mm	30 µin	0.76 µm	Beryllium Copper	UL94 V-0	28	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled	Gold	15.24 mm	DIP	0.6 in	-55 °C	125 °C
3M (TC) 228-1277-19-0602J	Solder			Through Hole	1 A	30 Áin	0.76 Ám	Beryllium Copper	0.6 in	DIP	15.24 mm	30 µin	0.76 µm	Beryllium Copper	UL94 V-0	28	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled	Gold	15.24 mm	DIP	0.6 in	-55 °C	125 °C
3M (TC) 228-1290-09-0602J	Solder	3.3 mm	0.13 in	Through Hole	1 A	30 Áin	0.76 Ám	Beryllium Copper	0.4 in	DIP	10.16 mm	30 µin	0.76 µm	Beryllium Copper	UL94 V-0	28	0.07 in	1.78 mm	Gold	1.78 mm	0.07 in	Polysulfone (PSU) Glass Filled	Gold				-55 °C	125 °C
3M (TC) 228-4817-00-0602J	Press-Fit	2.78 mm	0.11 in	Connector	1 A	30 Áin	0.76 Ám	Beryllium Copper				30 µin	0.76 µm	Beryllium Copper	UL94 V-0		0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled	Gold				-55 °C	125 °C	15 mOhm	DIP ZIF ZIP	10.16 mm	0.4 in	28	Closed Frame
3M (TC) 228-7474-55-1902	Solder	3.56 mm	0.14 in	Through Hole	1 A			Beryllium Copper				30 µin	0.76 µm	Beryllium Copper	UL94 V-0				Gold			Polyethersulfone (PES) Glass Filled	Gold				-55 °C	150 °C		SOIC			28	Closed Frame
3M (TC) 228-5204-01	Solder	3 mm	0.118 in	Through Hole				Beryllium Copper						Beryllium Copper			0.02 in	0.5 mm	Gold			Polyethersulfone (PES)	Gold						25 mOhm	QFN			28		4	7
3M (TC) 228-1290-00-0602J	Press-Fit	2.78 mm	0.11 in	Connector	1 A	30 Áin	0.76 Ám	Beryllium Copper				30 µin	0.76 µm	Beryllium Copper	UL94 V-0		0.07 in	1.78 mm	Gold	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled	Gold				-55 °C	125 °C	15 mOhm	DIP ZIF (ZIP)	15.24 mm		28	Closed Frame			0.6 "
3M (TC) 228-1371-00-0602J	Press-Fit	2.78 mm	0.11 in	Connector	1 A	30 Áin	0.76 Ám	Beryllium Copper				30 µin	0.76 µm	Beryllium Copper	UL94 V-0		0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled	Gold				-55 °C	125 °C	15 mOhm	DIP ZIF (ZIP)	15.24 mm		28	Closed Frame			0.6 "
3M (TC) 228-4817-09-0602J	Solder	3.3 mm	0.13 in	Through Hole	1 A	30 Áin	0.76 Ám	Beryllium Copper	0.4 in	DIP	10.16 mm	30 µin	0.76 µm	Beryllium Copper	UL94 V-0	28	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled	Gold				-55 °C	125 °C
3M (TC) 228-1277-39-0602J	Solder			Through Hole	1 A	30 Áin	0.76 Ám	Beryllium Copper	0.6 in	DIP	15.24 mm	30 µin	0.76 µm	Beryllium Copper	UL94 V-0	28	0.1 in	2.54 mm	Gold	2.54 mm	0.1 in	Polysulfone (PSU) Glass Filled	Gold	15.24 mm	DIP	0.6 in	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 135.48
		10	$ 105.67
		25	$ 96.24
		50	$ 89.89
		100	$ 84.15
Newark	Each	1	$ 19.78

Description

General part information

228 Series

28 (4 x 7) Pos QFN Socket Gold Through Hole
