27S,BK

Active

Serpac

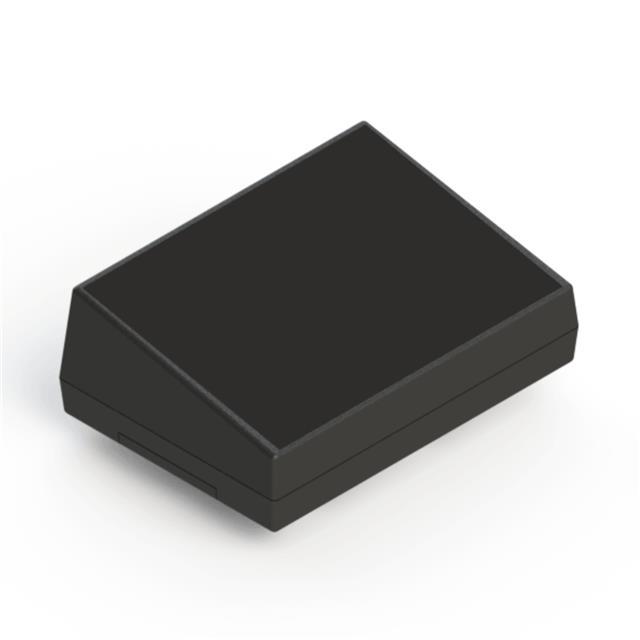

BOX ABS BLACK 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	27S,BK

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Black
Container Type	Box
Design	Split Sides and Slanted Top
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	63.25 mm
Height [z]	2.49 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.43 lb
Weight	195.04 g

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color	Design	Ratings	Material	Weight	Weight	Area (L x W)	Area (L x W)	Material Flammability Rating	Container Type	Thickness	Thickness	Features	Features	Height [z]	Height [z]
Serpac 27S,GY	123.95 mm	174.75 mm	4.88 in	6.88 in	Gray	Split Sides and Slanted Top	IP40	Plastic ABS	0.43 lb	195.04 g	33.6 in²	217 cm²	UL94 HB	Box	2.54 mm	0.1 in	Battery Compartment PCB Supports	9 V	63.25 mm	2.49 in
Serpac 27S,BK	123.95 mm	174.75 mm	4.88 in	6.88 in	Black	Split Sides and Slanted Top	IP40	Plastic ABS	0.43 lb	195.04 g	33.6 in²	217 cm²	UL94 HB	Box	2.54 mm	0.1 in	Battery Compartment PCB Supports	9 V	63.25 mm	2.49 in
Serpac 27S,AL	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Split Sides and Slanted Top	IP40	Plastic ABS	0.43 lb	195.04 g	33.6 in²	217 cm²	UL94 HB	Box	2.54 mm	0.1 in	Battery Compartment PCB Supports	9 V	63.25 mm	2.49 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Split Sides and Slanted Top 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.490" (63.25mm)
