27S,AL

Active

Serpac

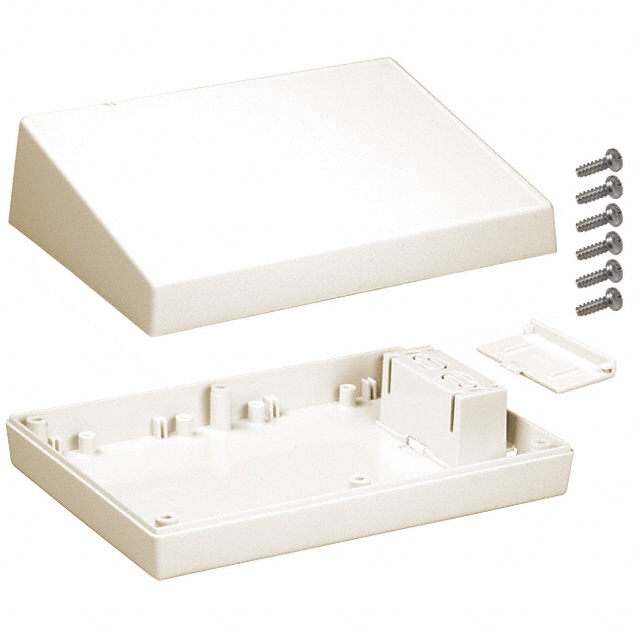

BOX ABS ALMOND 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	27S,AL

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Almond
Container Type	Box
Design	Split Sides and Slanted Top
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	63.25 mm
Height [z]	2.49 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.43 lb
Weight	195.04 g

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Color	Design	Ratings	Material	Weight	Weight	Area (L x W)	Area (L x W)	Material Flammability Rating	Container Type	Thickness	Thickness	Features	Features	Height [z]	Height [z]
Serpac 27S,GY	123.95 mm	174.75 mm	4.88 in	6.88 in	Gray	Split Sides and Slanted Top	IP40	Plastic ABS	0.43 lb	195.04 g	33.6 in²	217 cm²	UL94 HB	Box	2.54 mm	0.1 in	Battery Compartment PCB Supports	9 V	63.25 mm	2.49 in
Serpac 27S,BK	123.95 mm	174.75 mm	4.88 in	6.88 in	Black	Split Sides and Slanted Top	IP40	Plastic ABS	0.43 lb	195.04 g	33.6 in²	217 cm²	UL94 HB	Box	2.54 mm	0.1 in	Battery Compartment PCB Supports	9 V	63.25 mm	2.49 in
Serpac 27S,AL	123.95 mm	174.75 mm	4.88 in	6.88 in	Almond	Split Sides and Slanted Top	IP40	Plastic ABS	0.43 lb	195.04 g	33.6 in²	217 cm²	UL94 HB	Box	2.54 mm	0.1 in	Battery Compartment PCB Supports	9 V	63.25 mm	2.49 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.47

General part information

Box Plastic, ABS Almond Split Sides and Slanted Top 6.880" L x 4.880" W (174.75mm x 123.95mm) X 2.490" (63.25mm)

Technical documentation and resources

No documents available
