09140100311

Active

HARTING Technology Group

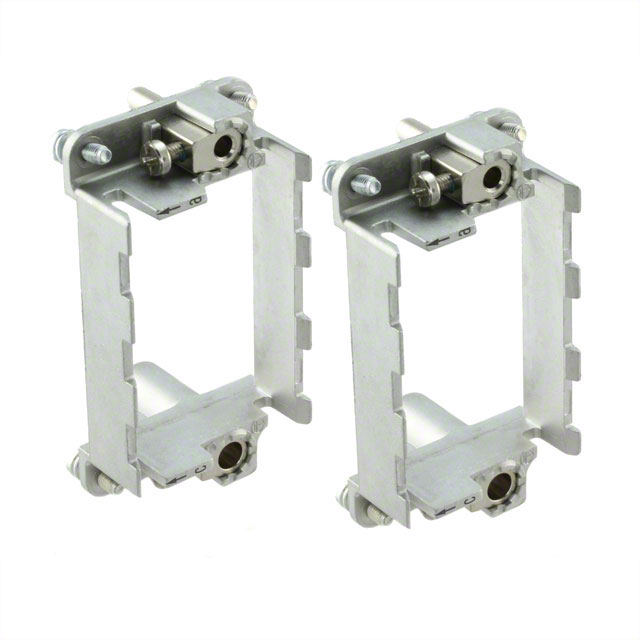

CONNECTOR ACCESSORY, FRAME, HARTING HAN-MODULAR SERIES 3 MODULE HOUSING CONNECTORS

Search across all available documentation for this part.

Active

HARTING Technology Group

CONNECTOR ACCESSORY, FRAME, HARTING HAN-MODULAR SERIES 3 MODULE HOUSING CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	09140100311

Frame Type	Fixed Frame

Part	Material	Gender	Frame Type	Size	Operating Temperature [Max]	Operating Temperature [Min]	Includes
HARTING Technology Group 09140100303	Zinc Die Cast	Male	Hinged Retaining Frame	10B	125 °C	-40 °C	1 Frame 4 Screws
HARTING Technology Group 09140100313	Zinc Die Cast	Female	Hinged Retaining Frame	10B	125 °C	-40 °C	1 Frame 4 Screws
HARTING Technology Group 09140100371	Zinc Die Cast	Non-Gendered	Hinged Retaining Frame	10B	125 °C	-40 °C	1 Frame 4 Screws
HARTING Technology Group 09140100361	Zinc Die Cast	Non-Gendered	Hinged Retaining Frame	10B	125 °C	-40 °C	1 Frame 4 Screws
HARTING Technology Group 09140100311			Fixed Frame
HARTING Technology Group 09140100301		Male	Hinged Retaining Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Module Heavy Duty Fixed Frame Size

Technical documentation and resources
