09140100361 - 09140100361

09140100361

Active
HARTING Technology Group

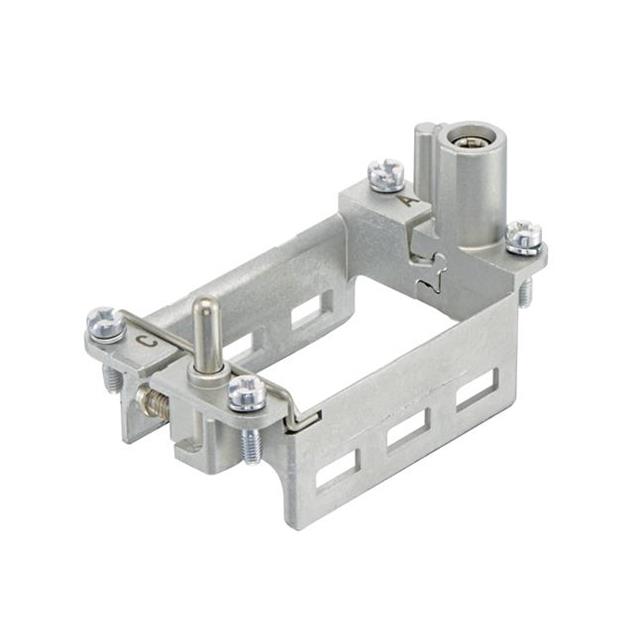

CONNECTOR ACCESSORY, 3 MOD, HINGED FRAME, HARTING HAN-MODULAR SERIES 10B MODULES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHinged Frames (Size 10 B) DatasheetDatasheet+2
09140100361 - 09140100361

09140100361

Active
HARTING Technology Group

CONNECTOR ACCESSORY, 3 MOD, HINGED FRAME, HARTING HAN-MODULAR SERIES 10B MODULES

Deep-Dive with AI

DocumentsHinged Frames (Size 10 B) DatasheetDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification09140100361
Frame TypeHinged, Retaining Frame
GenderNon-Gendered
Includes1 Frame, 4 Screws
MaterialZinc Die Cast
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size10B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 38.67
10$ 28.59
25$ 25.69
50$ 23.81
100$ 22.17
250$ 20.29
500$ 19.07
NewarkEach 1$ 29.34
5$ 26.81
10$ 24.28
25$ 22.39
50$ 21.04
100$ 19.80

Description

General part information

09140100 Series

The 09140100361 from Harting is a Han hinged frame plus for 3 modules A-C. It is approved by IEC 61984, EN 60664-1, UL standards.
