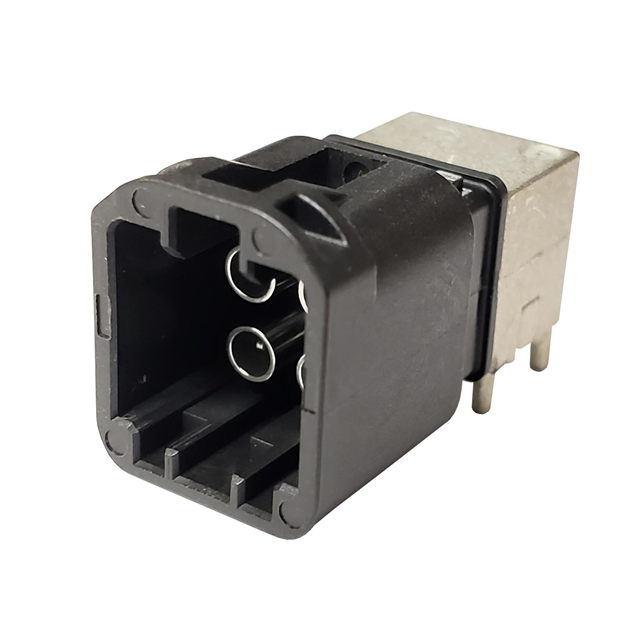

MHSD-04A-BM-PRA-TR - MHSD-04A-BM-PRA-TR

MHSD-04A-BM-PRA-TR

Active
Adam Tech

MINI FAKRA BOARD-SIDE PLUGS A CO

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMHSD-04A-BM-PRA-TR
Body FinishTin
Body MaterialZinc Die Cast
Center Contact MaterialBrass
Center Contact PlatingSilver
Connector StyleQuadraxial, Miniature Coaxial, Fakra
Connector TypeMale Pin, Plug
Contact TerminationSolder
Dielectric MaterialThermoplastic
Fastening TypeLatch Lock
FeaturesCode A
Frequency - Max [Max]9 GHz
Housing ColorBlack
Impedance50 Ohms
Insertion Loss0.75 dB
Mating Cycles25
Mounting TypeThrough Hole, Right Angle
Number of Ports1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 5.46
10$ 4.64
25$ 4.35
50$ 4.14
Tape & Reel (TR) 130$ 3.29
260$ 3.13
390$ 3.04
650$ 3.02

Description

General part information

MHSD-04 Series

Miniature Coaxial, Fakra, Quadraxial Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
