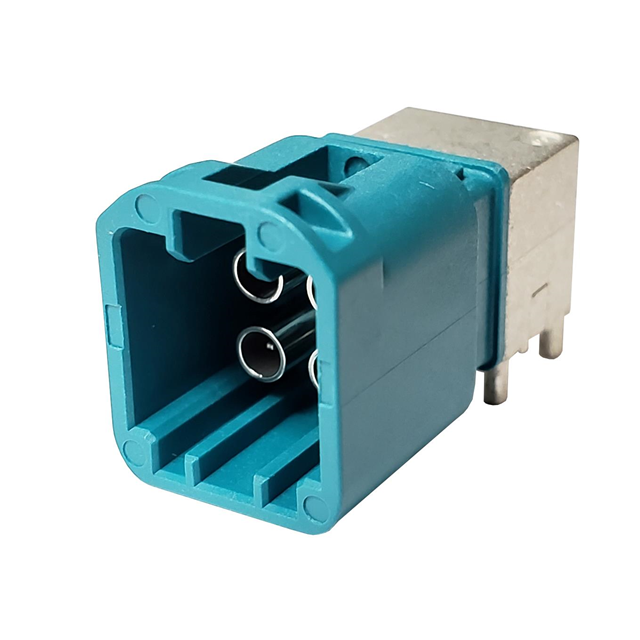

MHSD-04Z-BM-PRA-TR
ActiveAdam Tech
MINI FAKRA BOARD-SIDE PLUGS Z CO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MHSD-04Z-BM-PRA-TR
ActiveAdam Tech
MINI FAKRA BOARD-SIDE PLUGS Z CO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MHSD-04Z-BM-PRA-TR |
|---|---|
| Body Finish | Tin |
| Body Material | Zinc Die Cast |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | Quadraxial, Miniature Coaxial, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Thermoplastic |
| Fastening Type | Latch Lock |
| Features | Code Z |
| Frequency - Max [Max] | 9 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.75 dB |
| Mating Cycles | 25 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.05 | |
| 10 | $ 5.40 | |||
| 25 | $ 4.88 | |||
| 50 | $ 4.52 | |||
| Tape & Reel (TR) | 130 | $ 4.08 | ||
| 260 | $ 3.80 | |||
| 390 | $ 3.64 | |||
| 650 | $ 3.46 | |||
| 910 | $ 3.35 | |||
| 1300 | $ 3.24 | |||
| 3250 | $ 3.02 | |||
Description
General part information
MHSD-04 Series
Miniature Coaxial, Fakra, Quadraxial Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
