1424476 - 1424476

1424476

Active
Phoenix Contact

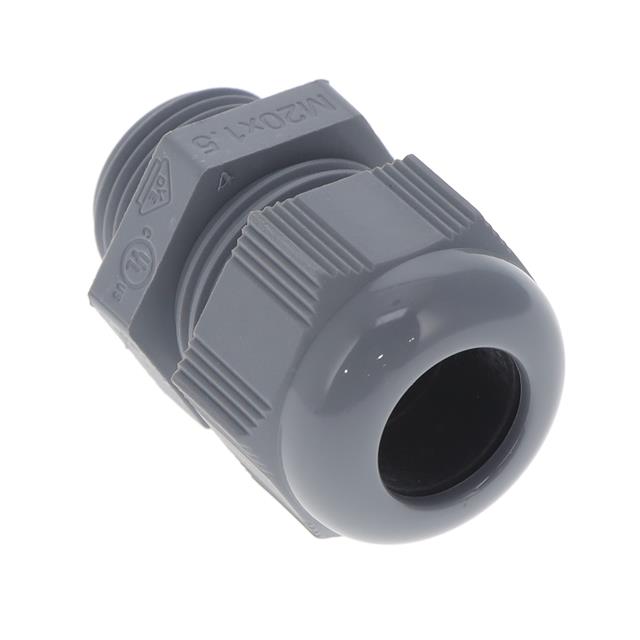

CABLE GLAND 10-14MM M20 POLYAMID

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
1424476 - 1424476

1424476

Active
Phoenix Contact

CABLE GLAND 10-14MM M20 POLYAMID

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification1424476
ColorGray
IncludesSeal
Ingress ProtectionIP66/IP68
MaterialPolyamide (PA), Nylon
Operating Temperature [Max]100 °C
Operating Temperature [Min]-40 °C
Outside Cable Diameter (Max) [Max]14 mm
Outside Cable Diameter (Max) [Max]0.551 "
Outside Cable Diameter (Min) [Min] [diameter]0.394 in
Outside Cable Diameter (Min) [Min] [diameter]10 mm
Thread Length10 mm
Thread Length0.394 in
Thread SizeM20x1.5
TypeCable Gland

G-INS-M20 Series

PartOutside Cable Diameter (Max) [Max]Outside Cable Diameter (Max) [Max]MaterialThread SizeThread LengthThread LengthOutside Cable Diameter (Min) [Min] [diameter]Outside Cable Diameter (Min) [Min] [diameter]TypeOperating Temperature [Max]Operating Temperature [Min]Ingress ProtectionIncludesColorOutside Cable Diameter (Max) [Max] [diameter]Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact
14 mm
0.551 "
Polyamide (PA)
Nylon
M20x1.5
10 mm
0.394 in
0.394 in
10 mm
Cable Gland
100 °C
-40 °C
IP66/IP68
Seal
Gray
Phoenix Contact
14 mm
0.551 "
Polyamide (PA)
Nylon
M20x1.5
10 mm
0.394 in
0.394 in
10 mm
Cable Gland
100 °C
-40 °C
IP66/IP68
Seal
Gray
Phoenix Contact
Polyamide (PA)
Nylon
M20
10 mm
0.394 in
0.236 in
6 mm
Cable Gland
100 °C
-40 °C
IP66/IP68
Seal
Light Gray
0.472 in
12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.76

Description

General part information

G-INS-M20 Series

Cable Gland Polyamide (PA), Nylon M20x1.5 Gray
