1414568

Active

Phoenix Contact

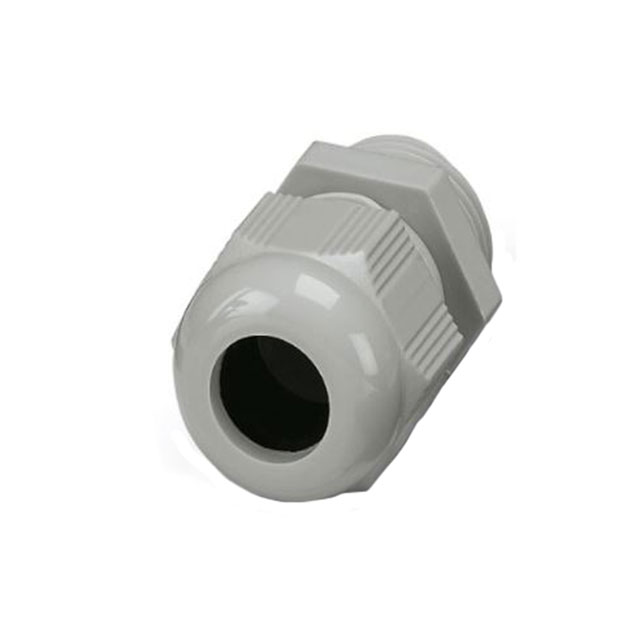

CABLE GLAND 6-12MM M20 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 6-12MM M20 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	1414568

Color	Light Gray
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	6 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.236 in
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M20
Type	Cable Gland

Part	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Thread Size	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Includes	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1424471	14 mm	0.551 "	Polyamide (PA) Nylon	M20x1.5	10 mm	0.394 in	0.394 in	10 mm	Cable Gland	100 °C	-40 °C	IP66/IP68	Seal	Gray
Phoenix Contact 1424476	14 mm	0.551 "	Polyamide (PA) Nylon	M20x1.5	10 mm	0.394 in	0.394 in	10 mm	Cable Gland	100 °C	-40 °C	IP66/IP68	Seal	Gray
Phoenix Contact 1414568			Polyamide (PA) Nylon	M20	10 mm	0.394 in	0.236 in	6 mm	Cable Gland	100 °C	-40 °C	IP66/IP68	Seal	Light Gray	0.472 in	12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M20 Light Gray
