0022142164

Active

Molex

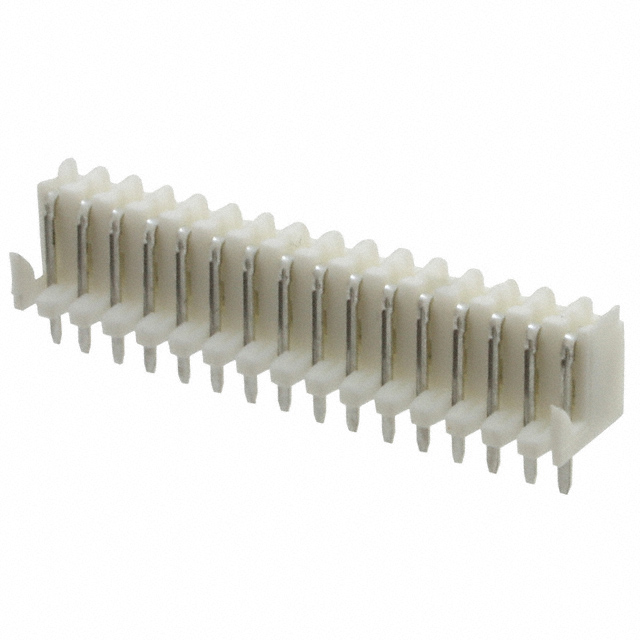

CONN RCPT 16POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

0022142164

Active

Molex

CONN RCPT 16POS 0.1 TIN PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022142164

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle, Bottom Entry
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Non-Gendered
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.311 in
Insulation Height	7.9 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

002214 Series

Part	Applications	Contact Type	Voltage Rating	Fastening Type	Contact Material	Contact Shape	Style	Insulation Material	Contact Length - Post	Contact Length - Post	Connector Type	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Number of Rows	Current Rating (Amps)	Mounting Type	Insulation Color	Features	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions
Molex 0022142054	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm
Molex 0022142204		Female Socket	500 V	Push-Pull	Copper	Square		Liquid Crystal Polymer (LCP)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C					1		Through Hole	White	Board Hooks	0.1 in	2.54 mm	20
Molex 0022142074	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	7
Molex 0022142025	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Phosphor Bronze	Square	Board to Board Cable	Nylon Polyamide (PA)			Receptacle Bottom Entry	UL94 V-0	All	3.81 Ám	150 Áin	Tin	Solder	-40 °C	105 ░C	3.81 Ám	150 Áin	0.311 in	7.9 mm	1	4 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	2
Molex 0022142162	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Phosphor Bronze	Square	Board to Board Cable	Nylon Polyamide (PA)			Receptacle Bottom Entry	UL94 V-0	All	3.81 Ám	150 Áin	Tin	Solder	-40 °C	105 ░C	3.81 Ám	150 Áin	0.311 in	7.9 mm	1	4 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm		16
Molex 0022142062	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Phosphor Bronze	Square	Board to Board Cable	Nylon Polyamide (PA)			Receptacle Bottom Entry	UL94 V-0	All	3.81 Ám	150 Áin	Tin	Solder	-40 °C	105 ░C	3.81 Ám	150 Áin	0.311 in	7.9 mm	1	4 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	6
Molex 0022142072	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Phosphor Bronze	Square	Board to Board Cable	Nylon Polyamide (PA)			Receptacle Bottom Entry	UL94 V-0	All	3.81 Ám	150 Áin	Tin	Solder	-40 °C	105 ░C	3.81 Ám	150 Áin	0.311 in	7.9 mm	1	4 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	7
Molex 0022142164	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm		16
Molex 0022142134	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	13
Molex 0022142094	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.10
		10	$ 2.36
		80	$ 1.90
		440	$ 1.64
		945	$ 1.55
		4900	$ 1.38

Description

General part information

002214 Series

16 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin

Documents

Technical documentation and resources

No documents available
