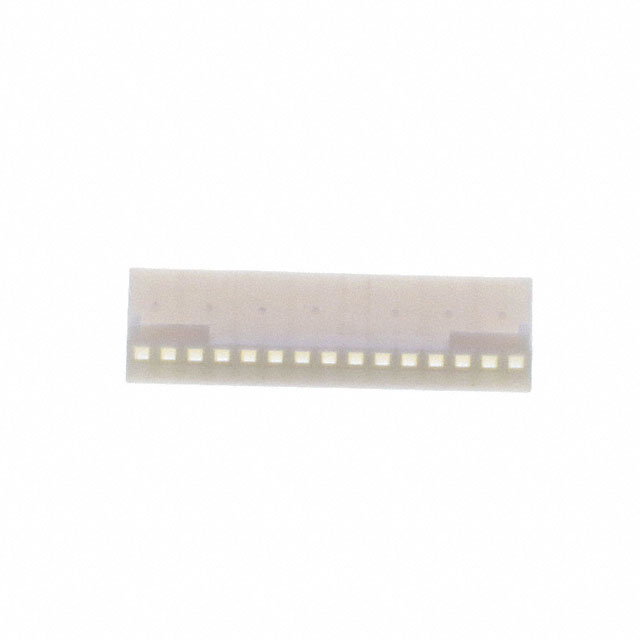

0022142204

Active

Molex

CONN RCPT 20POS 0.1 TIN PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022142204

Connector Type	Receptacle, Bottom Entry
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Copper
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	500 V

002214 Series

Part	Applications	Contact Type	Voltage Rating	Fastening Type	Contact Material	Contact Shape	Style	Insulation Material	Contact Length - Post	Contact Length - Post	Connector Type	Material Flammability Rating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Number of Rows	Current Rating (Amps)	Mounting Type	Insulation Color	Features	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions
Molex 0022142054	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm
Molex 0022142204		Female Socket	500 V	Push-Pull	Copper	Square		Liquid Crystal Polymer (LCP)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C					1		Through Hole	White	Board Hooks	0.1 in	2.54 mm	20
Molex 0022142074	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	7
Molex 0022142025	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Phosphor Bronze	Square	Board to Board Cable	Nylon Polyamide (PA)			Receptacle Bottom Entry	UL94 V-0	All	3.81 Ám	150 Áin	Tin	Solder	-40 °C	105 ░C	3.81 Ám	150 Áin	0.311 in	7.9 mm	1	4 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	2
Molex 0022142162	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Phosphor Bronze	Square	Board to Board Cable	Nylon Polyamide (PA)			Receptacle Bottom Entry	UL94 V-0	All	3.81 Ám	150 Áin	Tin	Solder	-40 °C	105 ░C	3.81 Ám	150 Áin	0.311 in	7.9 mm	1	4 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm		16
Molex 0022142062	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Phosphor Bronze	Square	Board to Board Cable	Nylon Polyamide (PA)			Receptacle Bottom Entry	UL94 V-0	All	3.81 Ám	150 Áin	Tin	Solder	-40 °C	105 ░C	3.81 Ám	150 Áin	0.311 in	7.9 mm	1	4 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	6
Molex 0022142072	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Phosphor Bronze	Square	Board to Board Cable	Nylon Polyamide (PA)			Receptacle Bottom Entry	UL94 V-0	All	3.81 Ám	150 Áin	Tin	Solder	-40 °C	105 ░C	3.81 Ám	150 Áin	0.311 in	7.9 mm	1	4 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	7
Molex 0022142164	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm		16
Molex 0022142134	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	13
Molex 0022142094	Automotive General Purpose Medical Telecommunications	Non-Gendered	250 VAC	Push-Pull	Brass	Square	Board to Board Cable	Nylon Polyamide (PA)	3.35 mm	0.132 in	Receptacle Bottom Entry	UL94 V-0	All	2.54 çm	100 çin	Tin	Solder	-40 °C	80 C	2.54 µm	100 µin	0.311 in	7.9 mm	1	2.5 A	Through Hole	White	Board Hooks	0.1 in	2.54 mm	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.75
		10	$ 1.49
		80	$ 1.23
		972	$ 1.14

Description

General part information

002214 Series

20 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin

Documents

Technical documentation and resources

No documents available
