DME-F-12-S2-SQ

Active

Adam Tech

PCB MOUNT SOCKET HEADER (W/OUT P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

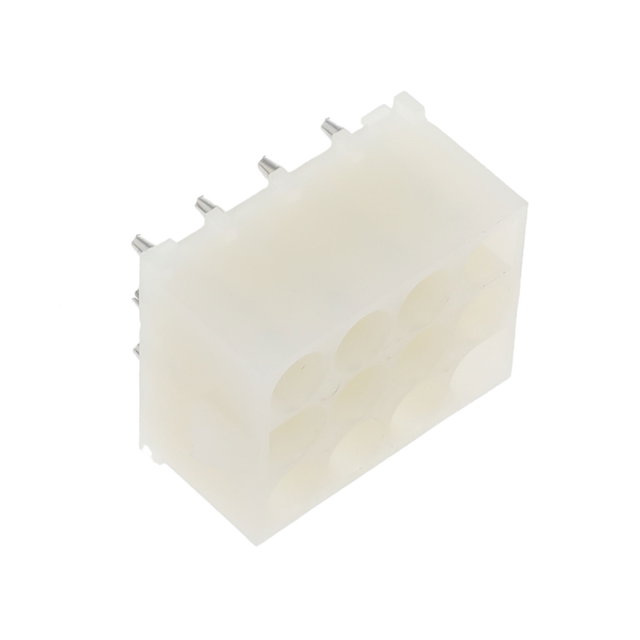

DME-F-12-S2-SQ

Active

Adam Tech

PCB MOUNT SOCKET HEADER (W/OUT P

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DME-F-12-S2-SQ

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.157 in
Contact Length - Post	4 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	9 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	14.75 mm
Insulation Height	0.581 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Row Spacing - Mating	0.25 in
Row Spacing - Mating	6.35 mm
Termination	Solder

DME-F Series

Part	Number of Positions Loaded	Connector Type	Contact Finish - Post	Features	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Fastening Type	Material Flammability Rating	Number of Positions	Termination	Current Rating (Amps)	Insulation Color	Insulation Material	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Pitch [x]	Pitch [x]	Note	Contact Termination	Row Spacing - Mating	Row Spacing - Mating	Row Spacing	Row Spacing
Adam Tech DME-F-02-S2-P-S	All	Receptacle	Tin	Board Guide	6.35 mm	0.25 in	Circular	Phosphor Bronze	0.157 in	4 mm	14.75 mm	0.581 in	Locking Ramp	UL94 V-2	2	Solder	12 A	Natural	Polyamide (PA66) Nylon 6/6	1	Female Socket	-40 °C	105 ░C	Through Hole
Adam Tech DME-F2-02		Receptacle											Locking Ramp		2				Polyamide (PA66) Nylon 6/6	1	Female Socket	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	0.25 in	6.35 mm	Contacts Not Included	Crimp
Adam Tech DME-F-04-S2-S	All	Receptacle	Tin		6.35 mm	0.25 in	Circular	Phosphor Bronze	0.157 in	4 mm	14.75 mm	0.581 in	Locking Ramp	UL94 V-2	4	Solder	12 A	Natural	Polyamide (PA66) Nylon 6/6	1	Female Socket	-40 °C	105 ░C	Through Hole
Adam Tech DME-F-12-S2-SQ	All	Receptacle	Tin		6.35 mm	0.25 in	Circular	Phosphor Bronze	0.157 in	4 mm	14.75 mm	0.581 in	Locking Ramp	UL94 V-2	12	Solder	9 A	Natural	Polyamide (PA66) Nylon 6/6	3	Female Socket	-40 °C	105 ░C	Through Hole						0.25 in	6.35 mm
Adam Tech DME-F2-09-SQ		Receptacle											Locking Ramp		9				Polyamide (PA66) Nylon 6/6	3	Female Socket	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	0.25 in	6.35 mm	Contacts Not Included	Crimp			6.35 mm	0.25 in
Adam Tech DME-F-09-S2-SQ	All	Receptacle	Tin		6.35 mm	0.25 in	Circular	Phosphor Bronze	0.157 in	4 mm	14.75 mm	0.581 in	Locking Ramp	UL94 V-2	9	Solder	9 A	Natural	Polyamide (PA66) Nylon 6/6	3	Female Socket	-40 °C	105 ░C	Through Hole						0.25 in	6.35 mm
