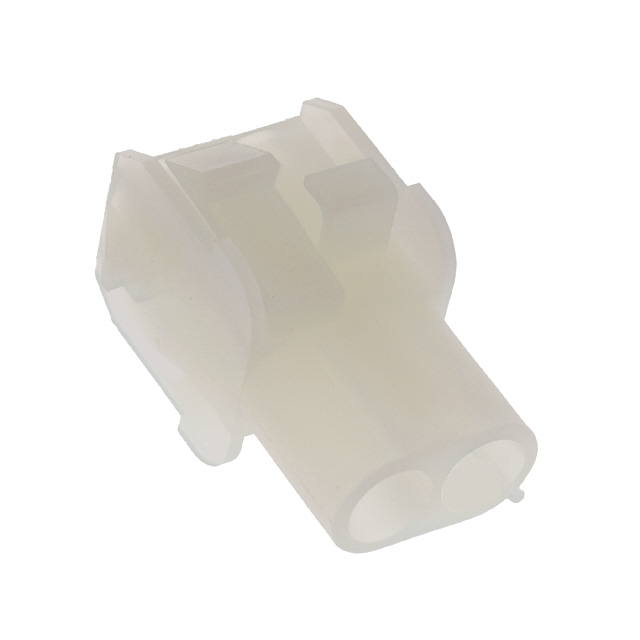

DME-F2-02

Active

Adam Tech

CONN RCPT HSG 2POS 6.35MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

DME-F2-02

Active

Adam Tech

CONN RCPT HSG 2POS 6.35MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DME-F2-02

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.25 in
Pitch [x]	6.35 mm

DME-F Series

Part	Number of Positions Loaded	Connector Type	Contact Finish - Post	Features	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Fastening Type	Material Flammability Rating	Number of Positions	Termination	Current Rating (Amps)	Insulation Color	Insulation Material	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Pitch [x]	Pitch [x]	Note	Contact Termination	Row Spacing - Mating	Row Spacing - Mating	Row Spacing	Row Spacing
Adam Tech DME-F-02-S2-P-S	All	Receptacle	Tin	Board Guide	6.35 mm	0.25 in	Circular	Phosphor Bronze	0.157 in	4 mm	14.75 mm	0.581 in	Locking Ramp	UL94 V-2	2	Solder	12 A	Natural	Polyamide (PA66) Nylon 6/6	1	Female Socket	-40 °C	105 ░C	Through Hole
Adam Tech DME-F2-02		Receptacle											Locking Ramp		2				Polyamide (PA66) Nylon 6/6	1	Female Socket	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	0.25 in	6.35 mm	Contacts Not Included	Crimp
Adam Tech DME-F-04-S2-S	All	Receptacle	Tin		6.35 mm	0.25 in	Circular	Phosphor Bronze	0.157 in	4 mm	14.75 mm	0.581 in	Locking Ramp	UL94 V-2	4	Solder	12 A	Natural	Polyamide (PA66) Nylon 6/6	1	Female Socket	-40 °C	105 ░C	Through Hole
Adam Tech DME-F-12-S2-SQ	All	Receptacle	Tin		6.35 mm	0.25 in	Circular	Phosphor Bronze	0.157 in	4 mm	14.75 mm	0.581 in	Locking Ramp	UL94 V-2	12	Solder	9 A	Natural	Polyamide (PA66) Nylon 6/6	3	Female Socket	-40 °C	105 ░C	Through Hole						0.25 in	6.35 mm
Adam Tech DME-F2-09-SQ		Receptacle											Locking Ramp		9				Polyamide (PA66) Nylon 6/6	3	Female Socket	-40 °C	105 ░C	Free Hanging (In-Line)	Natural	0.25 in	6.35 mm	Contacts Not Included	Crimp			6.35 mm	0.25 in
Adam Tech DME-F-09-S2-SQ	All	Receptacle	Tin		6.35 mm	0.25 in	Circular	Phosphor Bronze	0.157 in	4 mm	14.75 mm	0.581 in	Locking Ramp	UL94 V-2	9	Solder	9 A	Natural	Polyamide (PA66) Nylon 6/6	3	Female Socket	-40 °C	105 ░C	Through Hole						0.25 in	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.33
		10	$ 0.25
		25	$ 0.22
		50	$ 0.21
		100	$ 0.19
		250	$ 0.17
		500	$ 0.16
		1000	$ 0.15
		2500	$ 0.15
