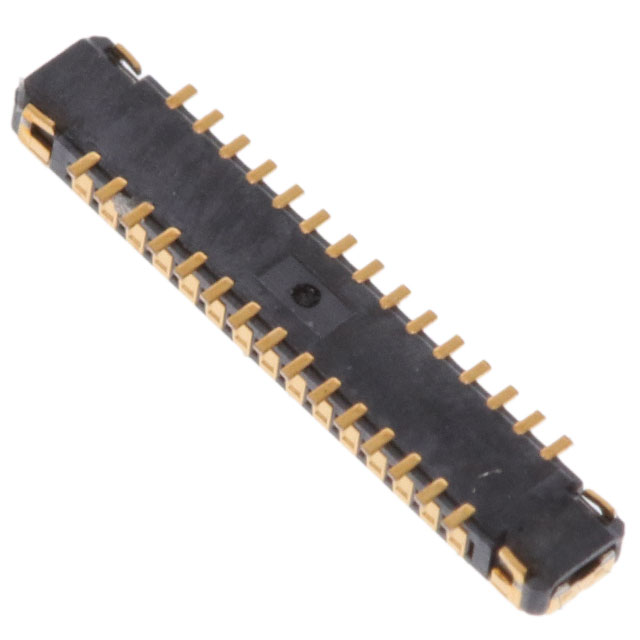

BM23PF0.8-30DP-0.35V(895)
ActiveHirose Electric USA, Inc.
CONN HDR 30POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsBM23PF0.8-30DP-0.35V(895) Spec
BM23PF0.8-30DP-0.35V(895)
ActiveHirose Electric USA, Inc.
CONN HDR 30POS SMD GOLD
Deep-Dive with AI
DocumentsBM23PF0.8-30DP-0.35V(895) Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | BM23PF0.8-30DP-0.35V(895) |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Features | Solder Retention |
| Height Above Board | 0.63 mm |
| Height Above Board | 0.025 in |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.24 | |
| 10 | $ 1.01 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.88 | |||
| 100 | $ 0.83 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.72 | |||
| Digi-Reel® | 1 | $ 1.41 | ||
| 10 | $ 1.19 | |||
| 25 | $ 1.14 | |||
| 50 | $ 1.11 | |||
| 100 | $ 1.07 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.87 | |||
| Tape & Reel (TR) | 1000 | $ 0.76 | ||
| 2000 | $ 0.73 | |||
| 3000 | $ 0.71 | |||
| 5000 | $ 0.68 | |||
| 7000 | $ 0.67 | |||
| 10000 | $ 0.65 | |||
Description
General part information
BM23PF0.8 Series
30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Documents
Technical documentation and resources
