TC-1A-DC-W-2

Active

Switch Components

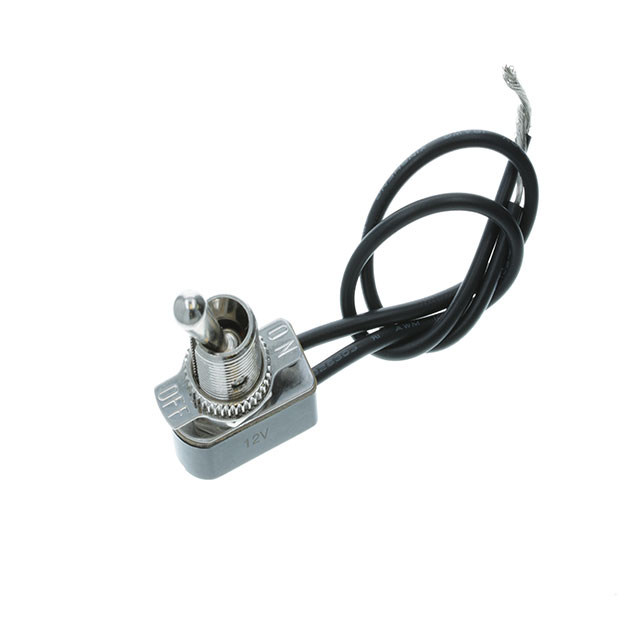

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 6A/12VDC; LEADS: CABLES; TC/TC

Search across all available documentation for this part.

Active

Switch Components

SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 6A/12VDC; LEADS: CABLES; TC/TC

Technical Specifications

Parameters and characteristics for this part

Specification	TC-1A-DC-W-2

Actuator Length [x]	11.1 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Current Rating (Amps)	6 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Wire Leads
Voltage Rating - DC	12 V

Part	Current Rating (Amps)	Actuator Type	Voltage Rating - DC	Bushing Thread	Bushing Thread	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Illumination	Termination Style
Switch Components TC-1A-DC-6-1	6 A 6 A	Ball Tip	12 V	M12	0.75	9 mm	85 °C	-20 C	6000 Cycles	On-Off	125 V	12.2 mm	SPST	Non-Illuminated	Screw Terminal
Switch Components TC-1A-DC-W-2	6 A	Standard Round	12 V	M12	0.75	11.1 mm	85 °C	-20 C	6000 Cycles	On-Off		12.2 mm	SPST	Non-Illuminated	Wire Leads
Switch Components TC-1A-AC-6-1	6 A	Ball Tip		M12	0.75	9 mm				On-Off	125 V	12.2 mm	SPST	Non-Illuminated	Screw Terminal
Switch Components TC-1A-AC-6-2	6 A	Standard Round		M12	0.75	11.1 mm	85 °C	-20 C		On-Off	125 V	12.2 mm	SPST	Non-Illuminated	Screw Terminal
Switch Components TC-1A-DC-6-2	6 A 6 A	Standard Round	12 V	M12	0.75	11.1 mm	85 °C	-20 C	6000 Cycles	On-Off	125 V	12.2 mm	SPST	Non-Illuminated	Screw Terminal
