TC-1A-DC-6-1

Active

Switch Components

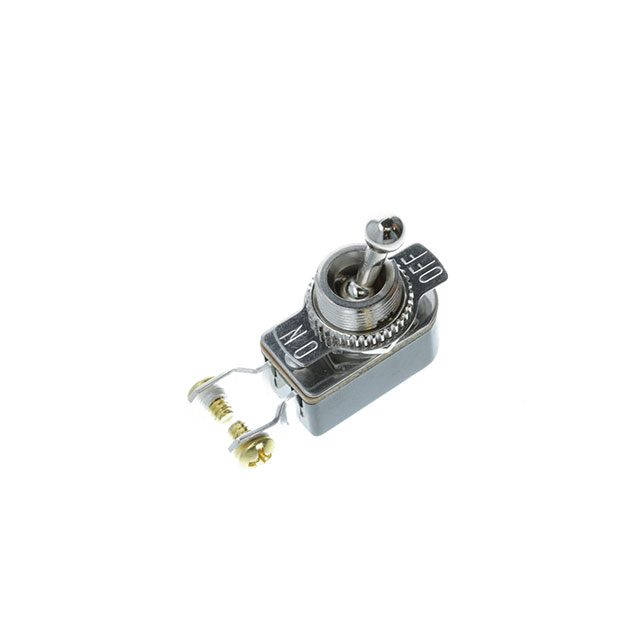

SWITCH TOGGLE SPST 6A 125V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	TC-1A-DC-6-1

Actuator Length [x]	9 mm
Actuator Type	Ball Tip
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPST
Current Rating (Amps)	6 A, 6 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Part	Current Rating (Amps)	Actuator Type	Voltage Rating - DC	Bushing Thread	Bushing Thread	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Circuit	Illumination	Termination Style
Switch Components TC-1A-DC-6-1	6 A 6 A	Ball Tip	12 V	M12	0.75	9 mm	85 °C	-20 C	6000 Cycles	On-Off	125 V	12.2 mm	SPST	Non-Illuminated	Screw Terminal
Switch Components TC-1A-DC-W-2	6 A	Standard Round	12 V	M12	0.75	11.1 mm	85 °C	-20 C	6000 Cycles	On-Off		12.2 mm	SPST	Non-Illuminated	Wire Leads
Switch Components TC-1A-AC-6-1	6 A	Ball Tip		M12	0.75	9 mm				On-Off	125 V	12.2 mm	SPST	Non-Illuminated	Screw Terminal
Switch Components TC-1A-AC-6-2	6 A	Standard Round		M12	0.75	11.1 mm	85 °C	-20 C		On-Off	125 V	12.2 mm	SPST	Non-Illuminated	Screw Terminal
Switch Components TC-1A-DC-6-2	6 A 6 A	Standard Round	12 V	M12	0.75	11.1 mm	85 °C	-20 C	6000 Cycles	On-Off	125 V	12.2 mm	SPST	Non-Illuminated	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.35

General part information

Toggle Switch SPST Panel Mount
