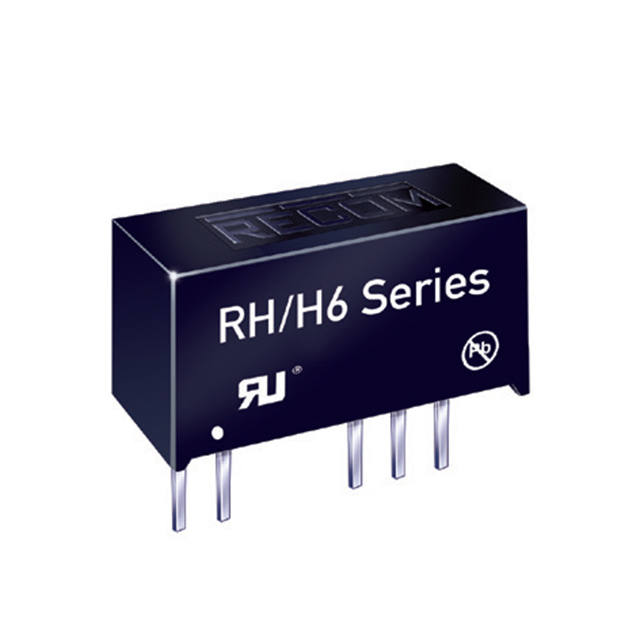

RK-1205S/H6

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

RK-1205S/H6

Active

RECOM Power

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RK-1205S/H6

Applications	ITE (Commercial)
Current - Output (Max) [Max]	200 mA
Efficiency	77 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 4 Leads
Size / Dimension [x]	19.6 mm
Size / Dimension [x]	0.77 in
Size / Dimension [y]	0.28 in
Size / Dimension [y]	7 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Isolation	6.4 kV
Voltage - Output 1	5 V

RK-053.3 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 4kV UNREG 24Vin 12Vout

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Mounting Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Package / Case	Features	Efficiency	Applications	Current - Output (Max) [Max]	Type	Number of Outputs
RECOM Power RK-153.3S/H6	0.28 in	10.2 mm	7 mm	19.6 mm	0.4 "	0.77 in	16.5 V	90 °C	-40 °C	6.4 kV	Through Hole	3.3 V	13.5 V	7-SIP Module 4 Leads	SCP	74 %	ITE (Commercial)	303 mA	Isolated Module	1
RECOM Power RK-053.3S/H6	0.28 in	10.2 mm	7 mm	19.6 mm	0.4 "	0.77 in	5.5 V	90 °C	-40 °C	6.4 kV	Through Hole	3.3 V	4.5 V	7-SIP Module 4 Leads	SCP	74 %	ITE (Commercial)	303 mA	Isolated Module	1
RECOM Power RK-2405S/H6	0.28 in	10.2 mm	7 mm	19.6 mm	0.4 "	0.77 in	26.4 V	90 °C	-40 °C	6.4 kV	Through Hole	5 V	21.6 V	7-SIP Module 4 Leads	SCP	77 %	ITE (Commercial)	200 mA	Isolated Module	1
RECOM Power RK-1205S/H6	0.28 in	10.2 mm	7 mm	19.6 mm	0.4 "	0.77 in	13.2 V	90 °C	-40 °C	6.4 kV	Through Hole	5 V	10.8 V	7-SIP Module 4 Leads	SCP	77 %	ITE (Commercial)	200 mA	Isolated Module	1
RECOM Power RK-1512S/P	0.24 "	10.2 mm	6 mm	19.7 mm	0.4 "	0.77 in	16.5 V	85 °C	-40 °C	3000 V	Through Hole	12 V	13.5 V	7-SIP Module 4 Leads	SCP	85 %	ITE (Commercial) Medical	84 mA	Isolated Module	1
RECOM Power RK-2415S/H6	0.28 in	10.2 mm	7 mm	19.6 mm	0.4 "	0.77 in	26.4 V	90 °C	-40 °C	6.4 kV	Through Hole	15 V	21.6 V	7-SIP Module 4 Leads	SCP	80 %	ITE (Commercial)	66 mA	Isolated Module	1
RECOM Power RK-243.3S/H6	0.28 in	10.2 mm	7 mm	19.6 mm	0.4 "	0.77 in	26.4 V	90 °C	-40 °C	6.4 kV	Through Hole	3.3 V	21.6 V	7-SIP Module 4 Leads	SCP	74 %	ITE (Commercial)	303 mA	Isolated Module	1
RECOM Power RK-1205S/H	0.28 in	10.2 mm	7.1 mm	19.7 mm	0.4 "	0.77 in	13.2 V	85 °C	-40 °C	4000 V	Through Hole	5 V	10.8 V	7-SIP Module 4 Leads		85 %	ITE (Commercial) Medical	200 mA	Isolated Module	1
RECOM Power RK-1512S/H6	0.28 in	10.2 mm	7 mm	19.6 mm	0.4 "	0.77 in	16.5 V	90 °C	-40 °C	6.4 kV	Through Hole	12 V	13.5 V	7-SIP Module 4 Leads	SCP	79 %	ITE (Commercial)	84 mA	Isolated Module	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.72
		5	$ 9.17
		10	$ 8.94
		25	$ 8.64
		50	$ 8.42
		100	$ 8.21
		250	$ 7.94
		500	$ 7.74
Newark	Each	25	$ 9.89
		50	$ 9.01
		100	$ 8.52
		250	$ 8.30
Sager	N/A	1	$ 9.12
		5	$ 8.81
		10	$ 8.40
		25	$ 8.14
		50	$ 8.04
		100	$ 7.81
		250	$ 7.28

Description

General part information

RK-053.3 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 4kV UNREG 24Vin 12Vout

Documents

Technical documentation and resources

Datasheet

Document

Technical Data Sheet EN

Datasheet
