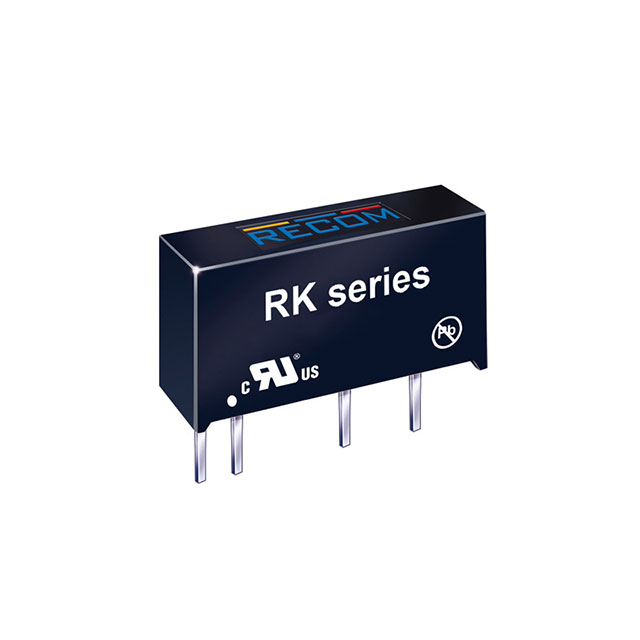

RK-1205S/H

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 4KV UNREG 12VIN 5VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RK-1205S/H

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 4KV UNREG 12VIN 5VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RK-1205S/H

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	200 mA
Efficiency	85 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 4 Leads
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.7 mm
Size / Dimension [y]	0.28 in
Size / Dimension [y]	7.1 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

RK-1505 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 4kV UNREG 24Vin 12Vout

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output (Max) [Max]	Type	Number of Outputs	Applications	Mounting Type	Voltage - Output 1	Features	Efficiency
RECOM Power RK-1212S	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	13.2 V	10.8 V	3000 V	85 °C	-40 °C	7-SIP Module 4 Leads	84 mA	Isolated Module	1	ITE (Commercial) Medical	Through Hole	12 V
RECOM Power RK-1209S/HP	10.2 mm	0.77 in	19.7 mm	0.28 in	0.4 "	7.1 mm	13.2 V	10.8 V	4000 V	85 °C	-40 °C	7-SIP Module 4 Leads		Isolated Module	1	ITE (Commercial) Medical	Through Hole	9 V	SCP	84 %
RECOM Power RK-2415S/H	10.2 mm	0.77 in	19.7 mm	0.28 in	0.4 "	7.1 mm	26.4 V	21.6 V	4000 V	85 °C	-40 °C	7-SIP Module 4 Leads	66 mA	Isolated Module	1	ITE (Commercial) Medical	Through Hole	15 V
RECOM Power RK-0505S	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	5.5 V	4.5 V	3000 V	85 °C	-40 °C	7-SIP Module 4 Leads	200 mA	Isolated Module	1	ITE (Commercial) Medical	Through Hole	5 V		78 %
RECOM Power RK-1515S/P	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	16.5 V	13.5 V	3000 V	85 °C	-40 °C	7-SIP Module 4 Leads	66 mA	Isolated Module	1	ITE (Commercial) Medical	Through Hole	15 V	SCP	85 %
RECOM Power RK-1212S/H	10.2 mm	0.77 in	19.7 mm	0.28 in	0.4 "	7.1 mm	13.2 V	10.8 V	4000 V	85 °C	-40 °C	7-SIP Module 4 Leads	84 mA	Isolated Module	1	ITE (Commercial) Medical	Through Hole	12 V		85 %
RECOM Power RK-0505S/H	10.2 mm	0.77 in	19.7 mm	0.28 in	0.4 "	7.1 mm	5.5 V	4.5 V	4000 V	85 °C	-40 °C	7-SIP Module 4 Leads	200 mA	Isolated Module	1	ITE (Commercial) Medical	Through Hole	5 V		78 %
RECOM Power RK-1505S	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	16.5 V	13.5 V	3000 V	85 °C	-40 °C	7-SIP Module 4 Leads	200 mA	Isolated Module	1	ITE (Commercial) Medical	Through Hole	5 V		78 %
RECOM Power RK-1509S/P	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	16.5 V	13.5 V	3000 V	85 °C	-40 °C	7-SIP Module 4 Leads		Isolated Module	1	ITE (Commercial) Medical	Through Hole	9 V	SCP	84 %
RECOM Power RK-1512S/P	10.2 mm	0.77 in	19.7 mm	0.24 "	0.4 "	6 mm	16.5 V	13.5 V	3000 V	85 °C	-40 °C	7-SIP Module 4 Leads	84 mA	Isolated Module	1	ITE (Commercial) Medical	Through Hole	12 V	SCP	85 %
