09185506927

Active

HARTING Technology Group

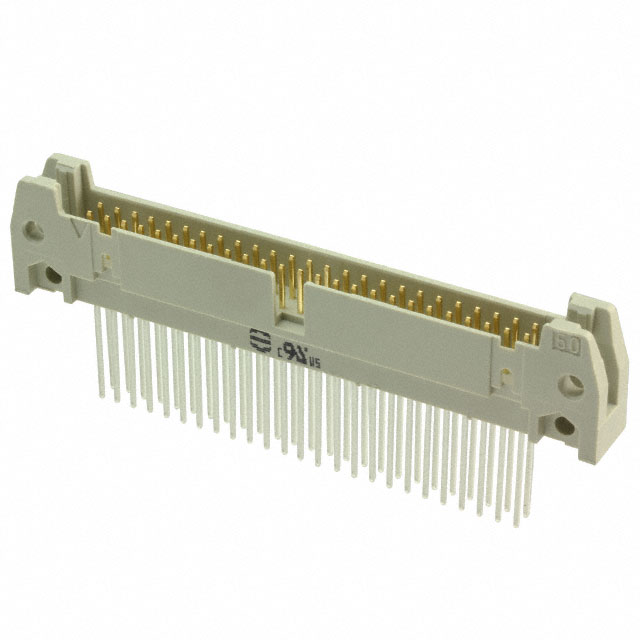

HEADER CONNECTOR,PCB MOUNT,RECEPT,50 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09185506927

Active

HARTING Technology Group

HEADER CONNECTOR,PCB MOUNT,RECEPT,50 CONTACTS,PIN,0.1 PITCH,WRAP POST TERMINAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09185506927

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Length - Post	0.591 in
Contact Length - Post	15 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Gray
Insulation Height	0.681 in
Insulation Height	17.3 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	28.6 mm
Overall Contact Length	1.126 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Wire Wrap

sek-standard Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Termination	Mounting Type	Number of Positions Loaded	Insulation Material	Material Flammability Rating	Contact Material	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Type	Insulation Height	Insulation Height	Contact Shape	Connector Type	Style	Shrouding	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Finish - Post	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
HARTING Technology Group 09195206923	-55 °C	125 °C	Beige	2.54 mm	0.1 in	0.228 in	5.8 mm	Solder	Through Hole Right Angle	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	20	0.1 in	2.54 mm	2	Male Pin	0.335 "	8.51 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Push-Pull
HARTING Technology Group 09195246924	-55 °C	125 °C	Beige	2.54 mm	0.1 in		6.1 mm	Solder	Through Hole	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	24	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Push-Pull	Tin	0.24 in	16.51 mm	0.65 in
HARTING Technology Group 09185266927	-55 °C	125 °C	Gray	2.54 mm	0.1 in	0.228 in	5.8 mm	Wire Wrap	Through Hole	All	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Copper Alloy	26	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.591 in	15 mm	Push-Pull	Tin			28.6 mm	Gold	1.126 in
HARTING Technology Group 09185506927	-55 °C	125 °C	Gray	2.54 mm	0.1 in	0.228 in	5.8 mm	Wire Wrap	Through Hole	All	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Copper Alloy	50	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.591 in	15 mm	Push-Pull	Tin			28.6 mm	Gold	1.126 in
HARTING Technology Group 09195607913	-55 °C	125 °C	Beige	2.54 mm	0.1 in		6.1 mm	Solder	Through Hole Right Angle	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	60	0.1 in	2.54 mm	2	Male Pin	0.335 "	8.51 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Latch Lock/Eject Hooks Short		0.24 in
HARTING Technology Group 09195267924	-55 °C	125 °C	Beige	2.54 mm	0.1 in		6.1 mm	Solder	Through Hole	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	26	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Push-Pull	Tin	0.24 in	16.51 mm	0.65 in
HARTING Technology Group 09195346904	-55 °C	125 °C	Beige	2.54 mm	0.1 in	0.228 in	5.8 mm	Solder	Through Hole	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	34	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Latch Lock/Eject Hooks Long	Tin		16.51 mm	0.65 in
HARTING Technology Group 09195266914	-55 °C	125 °C	Beige	2.54 mm	0.1 in	0.228 in	5.8 mm	Solder	Through Hole	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	26	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Latch Lock/Eject Hooks Short	Tin		16.51 mm	0.65 in
HARTING Technology Group 09185266926	-55 °C	125 °C	Gray	2.54 mm	0.1 in		6.1 mm	Wire Wrap	Through Hole Right Angle	All	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Copper Alloy	26	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.591 in	15 mm	Push-Pull		0.24 in			Gold
HARTING Technology Group 09195245903	-55 °C	125 °C	Beige	2.54 mm	0.1 in		6.1 mm	Solder	Through Hole Right Angle	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	24	0.1 in	2.54 mm	2	Male Pin	0.335 "	8.51 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Latch Lock/Eject Hooks Long	Tin	0.24 in			Gold		30 Áin	0.76 Ám
