HARTING Technology Group

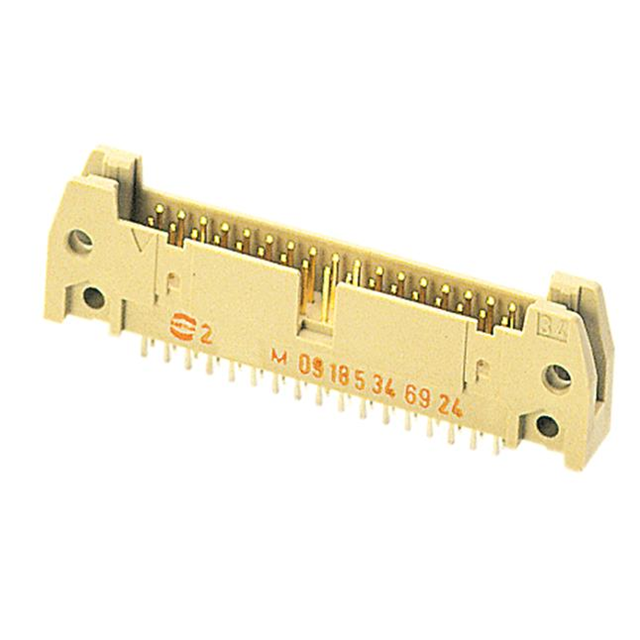

CONNECTOR: IDC; MALE; PIN: 24; SEK STANDARD; STRAIGHT; THT; 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09195246924

Unknown

HARTING Technology Group

CONNECTOR: IDC; MALE; PIN: 24; SEK STANDARD; STRAIGHT; THT; 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09195246924

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Beige
Insulation Height	0.681 in
Insulation Height	17.3 mm
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	16.51 mm
Overall Contact Length	0.65 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

sek-standard Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Termination	Mounting Type	Number of Positions Loaded	Insulation Material	Material Flammability Rating	Contact Material	Number of Positions	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Type	Insulation Height	Insulation Height	Contact Shape	Connector Type	Style	Shrouding	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Finish - Post	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
HARTING Technology Group 09195206923	-55 °C	125 °C	Beige	2.54 mm	0.1 in	0.228 in	5.8 mm	Solder	Through Hole Right Angle	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	20	0.1 in	2.54 mm	2	Male Pin	0.335 "	8.51 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Push-Pull
HARTING Technology Group 09195246924	-55 °C	125 °C	Beige	2.54 mm	0.1 in		6.1 mm	Solder	Through Hole	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	24	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Push-Pull	Tin	0.24 in	16.51 mm	0.65 in
HARTING Technology Group 09185266927	-55 °C	125 °C	Gray	2.54 mm	0.1 in	0.228 in	5.8 mm	Wire Wrap	Through Hole	All	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Copper Alloy	26	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.591 in	15 mm	Push-Pull	Tin			28.6 mm	Gold	1.126 in
HARTING Technology Group 09185506927	-55 °C	125 °C	Gray	2.54 mm	0.1 in	0.228 in	5.8 mm	Wire Wrap	Through Hole	All	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Copper Alloy	50	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.591 in	15 mm	Push-Pull	Tin			28.6 mm	Gold	1.126 in
HARTING Technology Group 09195607913	-55 °C	125 °C	Beige	2.54 mm	0.1 in		6.1 mm	Solder	Through Hole Right Angle	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	60	0.1 in	2.54 mm	2	Male Pin	0.335 "	8.51 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Latch Lock/Eject Hooks Short		0.24 in
HARTING Technology Group 09195267924	-55 °C	125 °C	Beige	2.54 mm	0.1 in		6.1 mm	Solder	Through Hole	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	26	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Push-Pull	Tin	0.24 in	16.51 mm	0.65 in
HARTING Technology Group 09195346904	-55 °C	125 °C	Beige	2.54 mm	0.1 in	0.228 in	5.8 mm	Solder	Through Hole	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	34	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Latch Lock/Eject Hooks Long	Tin		16.51 mm	0.65 in
HARTING Technology Group 09195266914	-55 °C	125 °C	Beige	2.54 mm	0.1 in	0.228 in	5.8 mm	Solder	Through Hole	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	26	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Latch Lock/Eject Hooks Short	Tin		16.51 mm	0.65 in
HARTING Technology Group 09185266926	-55 °C	125 °C	Gray	2.54 mm	0.1 in		6.1 mm	Wire Wrap	Through Hole Right Angle	All	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Copper Alloy	26	0.1 in	2.54 mm	2	Male Pin	0.681 in	17.3 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.591 in	15 mm	Push-Pull		0.24 in			Gold
HARTING Technology Group 09195245903	-55 °C	125 °C	Beige	2.54 mm	0.1 in		6.1 mm	Solder	Through Hole Right Angle	All	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	UL94 V-0	Copper Alloy	24	0.1 in	2.54 mm	2	Male Pin	0.335 "	8.51 mm	Square	Header	Board to Cable/Wire	Shrouded - 4 Wall	0.114 in	2.9 mm	Latch Lock/Eject Hooks Long	Tin	0.24 in			Gold		30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

TME	N/A	100	$ 3.12

Description

General part information

sek-standard Series

Connector Header Through Hole 24 position 0.100" (2.54mm)
