09162423001

Active

HARTING Technology Group

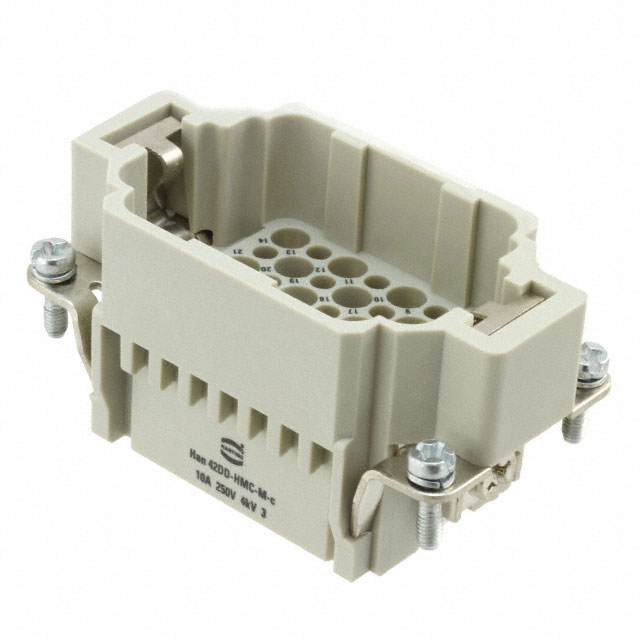

CONN RECTANGULAR M 42 POS CRIMP ST CABLE MOUNT

Search across all available documentation for this part.

Active

HARTING Technology Group

CONN RECTANGULAR M 42 POS CRIMP ST CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	09162423001

Connector Type	Insert without Contacts
Contact Type	Han® High Temp
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	42+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Crimp
Voltage Rating	250 VDC

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Type	Gender	Current Rating (Amps)	Housing Material	Material Flammability Rating	Number of Positions	Termination Style	Size
HARTING Technology Group 09162423101	Insert without Contacts	125 °C	-40 °C	250 VDC	Han® High Temp	Female	10 A	Polycarbonate (PC)	UL94 V-0	42+Ground	Crimp	10B
HARTING Technology Group 09162423001	Insert without Contacts	125 °C	-40 °C	250 VDC	Han® High Temp	Male	10 A	Polycarbonate (PC)	UL94 V-0	42+Ground	Crimp	10B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts 42+Ground Position Crimp
