Technical Specifications
Parameters and characteristics for this part
| Specification | 09162423101 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Type | Han® High Temp |
| Current Rating (Amps) | 10 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 42+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10B |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09162423 Series

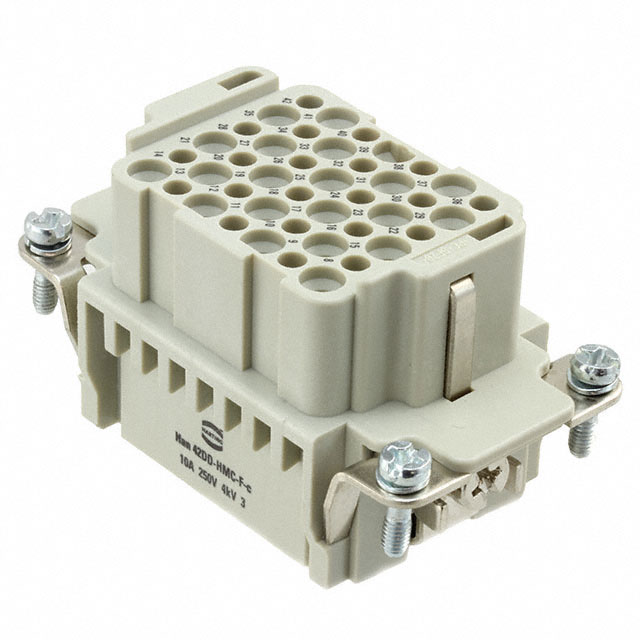

The 09162423101 from Harting is a 10 B size, Han® 42 DD HMC (High Mating Cycles) female insert with crimp termination. Suitable for hoods/housings of Han® B HMC series.
