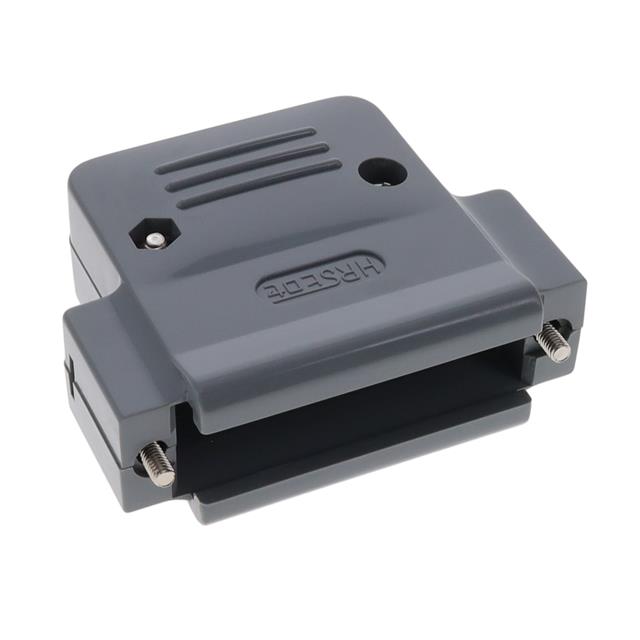

HDB-CTF(50)

Active

Hirose Electric USA, Inc.

PLASTIC D-SUBMINIATURE SHELLS (ACCESSORIES) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDB-CTF(50)

Active

Hirose Electric USA, Inc.

PLASTIC D-SUBMINIATURE SHELLS (ACCESSORIES) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDB-CTF(50)

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Gray
Features	Mating Screws M2.6
Hardware	Assembly Hardware
Material	Acrylonitrile Butadiene Styrene (ABS)
Primary Material	Plastic
Shielding	Unshielded

HDB Series

Part	Features	Accessory Type	Shielding	Plating	Cable Type	Cable Exit	Hardware	Primary Material	Material	Color	Dielectric Material	Current Rating (Amps)	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Contact Type	Connector Style	Connector Type	Shell Material, Finish	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Form	Material Flammability Rating	Number of Rows	Voltage Rating	For Use With/Related Products
Hirose Electric USA, Inc. HDB-CTH(10)	Mating Screws M2.6	Two Piece Backshell	Unshielded	Nickel	Round	180 °	Assembly Hardware	Plastic	Acrylonitrile Butadiene Styrene (ABS)	Silver
Hirose Electric USA, Inc. HDB-CTF(4-40)(50)	Mating Screws 4-40	Two Piece Backshell	Unshielded		Round	180 °	Assembly Hardware	Plastic	Acrylonitrile Butadiene Styrene (ABS)
Hirose Electric USA, Inc. HDBB-25S(05)										Black	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Phosphor Bronze	85 °C	-40 °C	Housing/Shell (Unthreaded)	Signal	D-Sub	Receptacle Female Sockets	Nickel Plated Steel	Gold	B DB	3	Stamped	UL94 V-0	2	400 V
Hirose Electric USA, Inc. HDBB-25PF(01)
Hirose Electric USA, Inc. HDB-CTF(50)	Mating Screws M2.6	Two Piece Backshell	Unshielded		Round	180 °	Assembly Hardware	Plastic	Acrylonitrile Butadiene Styrene (ABS)	Gray
Hirose Electric USA, Inc. HDBB-25P(05)										Black	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Copper Alloy	85 °C	-40 °C	Housing/Shell (Unthreaded)	Signal	D-Sub	Male Pins Plug	Nickel Plated Steel	Gold	B DB	3	Stamped	UL94 V-0	2	400 V
Hirose Electric USA, Inc. HDB-CTF1(4-40)(50)	Mating Screws 4-40	Two Piece Backshell	Unshielded		Round	180 °	Assembly Hardware	Plastic	Acrylonitrile Butadiene Styrene (ABS)
Hirose Electric USA, Inc. HDB-C(50)		Cable Clamp																										D-Sub Connectors
Hirose Electric USA, Inc. HDB-25P(50)
Hirose Electric USA, Inc. HDBW-25-CV(50)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.29
		10	$ 7.50
		30	$ 7.08
		50	$ 6.91
		100	$ 6.56
		250	$ 5.87
		500	$ 5.53
		1000	$ 4.84
Newark	Each	1	$ 7.76
		250	$ 6.84

Description

General part information

HDB Series

25 Position Two Piece Backshell Connector Gray 180° Unshielded

Documents

Technical documentation and resources
