HDBB-25P(05)

Active

Hirose Electric USA, Inc.

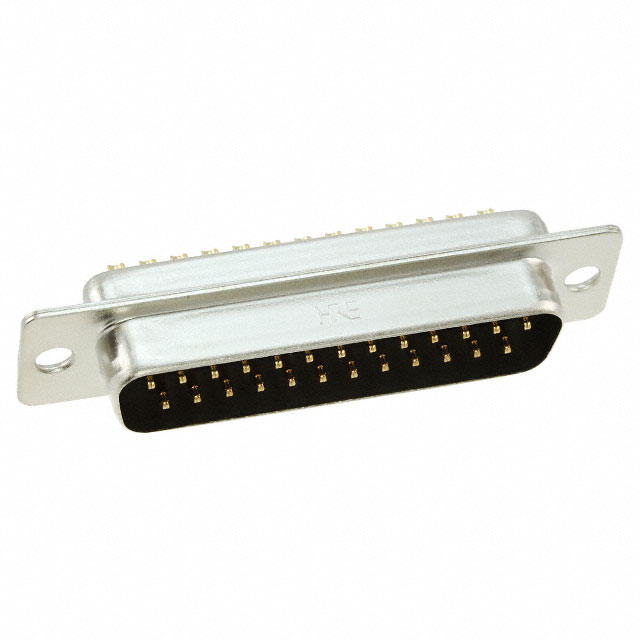

CONN D-SUB PLUG 25POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDBB-25P(05)

Active

Hirose Electric USA, Inc.

CONN D-SUB PLUG 25POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDBB-25P(05)

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Voltage Rating	400 V

HDB Series

Part	Features	Accessory Type	Shielding	Plating	Cable Type	Cable Exit	Hardware	Primary Material	Material	Color	Dielectric Material	Current Rating (Amps)	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Contact Type	Connector Style	Connector Type	Shell Material, Finish	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Form	Material Flammability Rating	Number of Rows	Voltage Rating	For Use With/Related Products
Hirose Electric USA, Inc. HDB-CTH(10)	Mating Screws M2.6	Two Piece Backshell	Unshielded	Nickel	Round	180 °	Assembly Hardware	Plastic	Acrylonitrile Butadiene Styrene (ABS)	Silver
Hirose Electric USA, Inc. HDB-CTF(4-40)(50)	Mating Screws 4-40	Two Piece Backshell	Unshielded		Round	180 °	Assembly Hardware	Plastic	Acrylonitrile Butadiene Styrene (ABS)
Hirose Electric USA, Inc. HDBB-25S(05)										Black	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Phosphor Bronze	85 °C	-40 °C	Housing/Shell (Unthreaded)	Signal	D-Sub	Receptacle Female Sockets	Nickel Plated Steel	Gold	B DB	3	Stamped	UL94 V-0	2	400 V
Hirose Electric USA, Inc. HDBB-25PF(01)
Hirose Electric USA, Inc. HDB-CTF(50)	Mating Screws M2.6	Two Piece Backshell	Unshielded		Round	180 °	Assembly Hardware	Plastic	Acrylonitrile Butadiene Styrene (ABS)	Gray
Hirose Electric USA, Inc. HDBB-25P(05)										Black	Polybutylene Terephthalate (PBT) Glass Filled	3 A	Copper Alloy	85 °C	-40 °C	Housing/Shell (Unthreaded)	Signal	D-Sub	Male Pins Plug	Nickel Plated Steel	Gold	B DB	3	Stamped	UL94 V-0	2	400 V
Hirose Electric USA, Inc. HDB-CTF1(4-40)(50)	Mating Screws 4-40	Two Piece Backshell	Unshielded		Round	180 °	Assembly Hardware	Plastic	Acrylonitrile Butadiene Styrene (ABS)
Hirose Electric USA, Inc. HDB-C(50)		Cable Clamp																										D-Sub Connectors
Hirose Electric USA, Inc. HDB-25P(50)
Hirose Electric USA, Inc. HDBW-25-CV(50)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.81
		10	$ 7.53
		25	$ 6.80
		40	$ 6.46
		80	$ 6.00
		230	$ 5.37
		440	$ 5.03
		945	$ 4.67

Description

General part information

HDB Series

25 Position D-Sub Plug, Male Pins Connector
