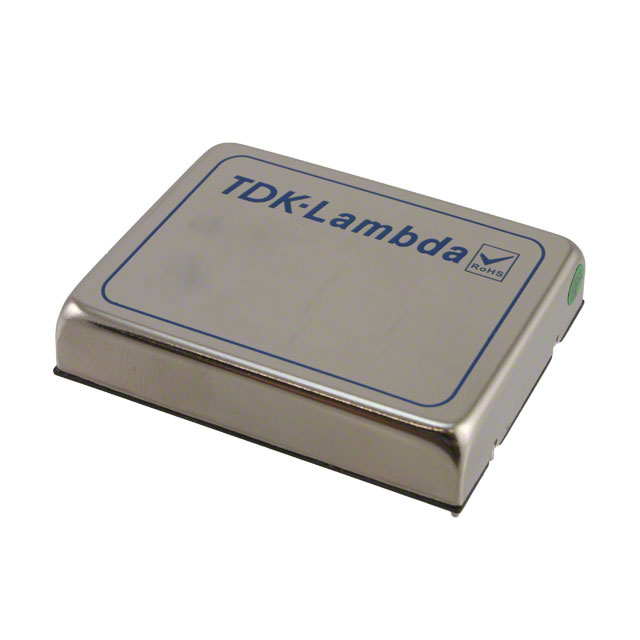

PXE20-24WD05 - PXE Series

PXE20-24WD05

Active
TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 20 W, 2 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
PXE20-24WD05 - PXE Series

PXE20-24WD05

Active
TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 20 W, 2 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPXE20-24WD05
ApplicationsITE (Commercial)
Current - Output (Max) [Max]2 A
Current - Output (Max) [Max]2 A
Efficiency79 %
FeaturesRemote On/Off
Mounting TypeThrough Hole
Number of Outputs2
Operating Temperature [Max]100 °C
Operating Temperature [Min]-40 °C
Package / Case8-DIP Module, 7 Leads
Power (Watts)20 W
Size / Dimension [x]2 in
Size / Dimension [x]50.8 mm
Size / Dimension [y]40.6 mm
Size / Dimension [y]1.6 "
Size / Dimension [z]0.4 "
Size / Dimension [z]8.6 mm
TypeIsolated Module
Voltage - Input (Max) [Max]36 V
Voltage - Input (Min) [Min]9 V
Voltage - Isolation1.6 kV
Voltage - Output 15 V
Voltage - Output 2-5 V

PXE20 Series

PartNumber of OutputsTypeApplicationsCurrent - Output (Max) [Max]Current - Output (Max) [Max]Voltage - Output 1Voltage - IsolationPower (Watts)Voltage - Output 2Mounting TypePackage / CaseOperating Temperature [Max]Operating Temperature [Min]Voltage - Input (Min) [Min]Voltage - Input (Max) [Max]Size / Dimension [x]Size / Dimension [y]Size / Dimension [z]Size / Dimension [x]Size / Dimension [y]Size / Dimension [z]FeaturesEfficiencyCurrent - Output (Max)Current - Output (Max)Current - Output (Max)
TDK-LAMBDA
PXE20-48WD05
2
Isolated Module
ITE (Commercial)
2 A
2 A
5 V
1.6 kV
20 W
-5 V
Through Hole
8-DIP Module
7 Leads
100 °C
-40 °C
18 V
75 V
2 in
40.6 mm
0.4 "
50.8 mm
1.6 "
8.6 mm
Remote On/Off
79 %
TDK-LAMBDA
PXE20-48WD12
2
Isolated Module
ITE (Commercial)
12 V
1.6 kV
20 W
-12 V
Through Hole
8-DIP Module
7 Leads
100 °C
-40 °C
18 V
75 V
2 in
40.6 mm
0.4 "
50.8 mm
1.6 "
8.6 mm
Remote On/Off
83 %
833 mA
833 mA
TDK-LAMBDA
PXE20-24WD05
2
Isolated Module
ITE (Commercial)
2 A
2 A
5 V
1.6 kV
20 W
-5 V
Through Hole
8-DIP Module
7 Leads
100 °C
-40 °C
9 V
36 V
2 in
40.6 mm
0.4 "
50.8 mm
1.6 "
8.6 mm
Remote On/Off
79 %
TDK-LAMBDA
PXE20-24WD12
2
Isolated Module
ITE (Commercial)
12 V
1.6 kV
20 W
-12 V
Through Hole
8-DIP Module
7 Leads
100 °C
-40 °C
9 V
36 V
2 in
40.6 mm
0.4 "
50.8 mm
1.6 "
8.6 mm
Remote On/Off
81 %
833 mA
833 mA
TDK-LAMBDA
PXE20-24WS15
1
Isolated Module
ITE (Commercial)
1.33 A
15 V
1.6 kV
20 W
Through Hole
8-DIP Module
6 Leads
100 °C
-40 °C
9 V
36 V
2 in
40.6 mm
0.4 "
50.8 mm
1.6 "
8.6 mm
Remote On/Off
81 %
TDK-LAMBDA
PXE20-48WD15
2
Isolated Module
ITE (Commercial)
15 V
1.6 kV
20 W
-15 V
Through Hole
8-DIP Module
7 Leads
100 °C
-40 °C
18 V
75 V
2 in
40.6 mm
0.4 "
50.8 mm
1.6 "
8.6 mm
Remote On/Off
84 %
666 mA
0.666 A
TDK-LAMBDA
PXE20-48WS12
1
Isolated Module
ITE (Commercial)
1.67 A
12 V
1.6 kV
20 W
Through Hole
8-DIP Module
6 Leads
100 °C
-40 °C
18 V
75 V
2 in
40.6 mm
0.4 "
50.8 mm
1.6 "
8.6 mm
Remote On/Off
81 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 85.03
10$ 80.56
25$ 75.33
50$ 70.90
NewarkEach 1$ 85.03
10$ 80.56
25$ 75.33
50$ 70.90

Description

General part information

PXE20 Series

PXE20-24WD05 is a PXE20 series isolated DC-DC converter in a 2 x 1.6" (50.8 x 40.6mm) industry standard package. It also feature a six-sided, shielded metal case for reduced radiated noise, making them suitable for a wide variety of industrial, ICT (Information and Communications Technology) and test and measurement applications.
