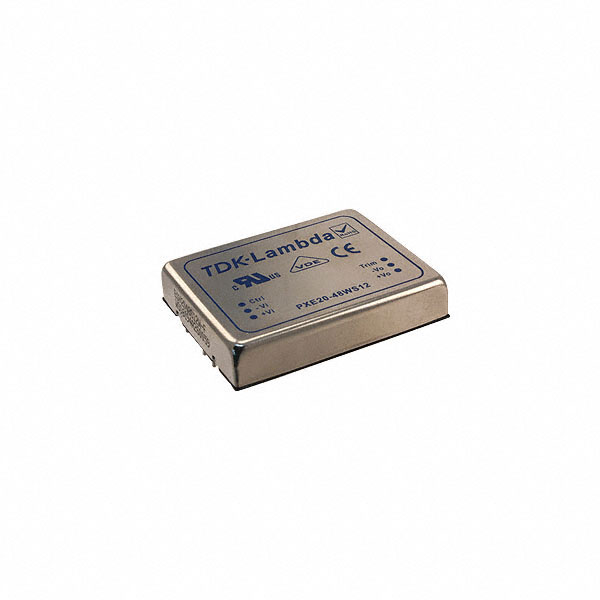

PXE20-48WS12
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 20 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
PXE20-48WS12
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 20 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXE20-48WS12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.67 A |
| Efficiency | 81 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module, 6 Leads |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 40.6 mm |
| Size / Dimension [y] | 1.6 " |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 8.6 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PXE20 Series
PXE20-48WS12 is a PXE20 series isolated DC-DC converter in a 2 x 1.6" (50.8 x 40.6mm) industry standard package. It also feature a six-sided, shielded metal case for reduced radiated noise, making them suitable for a wide variety of industrial, ICT (Information and Communications Technology) and test and measurement applications.
