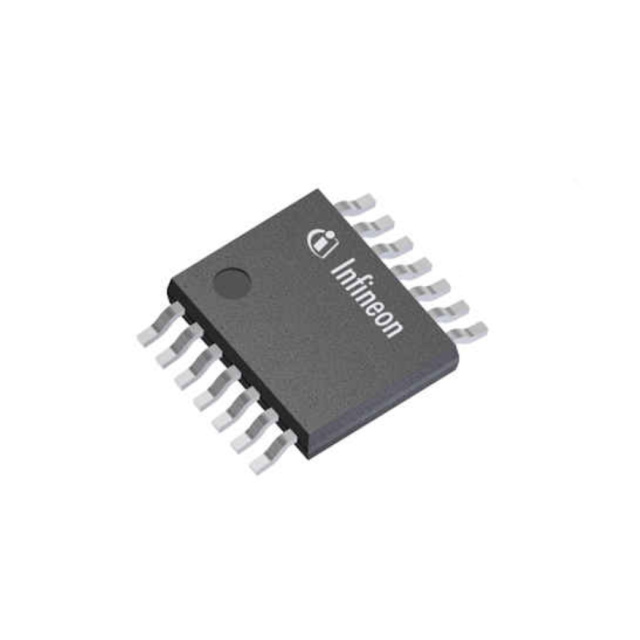

TLS715B0NAV50XTSA1

Obsolete

Infineon Technologies

IC REG LINEAR 5V 150MA TSNP-7-8

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC REG LINEAR 5V 150MA TSNP-7-8

Technical Specifications

Parameters and characteristics for this part

Specification	TLS715B0NAV50XTSA1

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	5 µA
Current - Supply (Max) [Max]	80 µA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Protection Features	Over Current, Over Temperature
PSRR	60 dB
Qualification	AEC-Q100
Supplier Device Package	PG-TSNP-7-8
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.18 V

Part	Supplied Contents	Contents	Current - Output	Utilized IC / Part	Channels per IC	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Regulator Type	Current - Supply (Max) [Max]	Output Type	Output Configuration	Protection Features	Grade	Number of Regulators	Voltage - Output (Min/Fixed)	PSRR	Qualification	Supplier Device Package	Voltage Dropout (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Current - Quiescent (Iq)
Infineon Technologies TLS715B0EJV50BOARDTOBO1	Board(s)	Board(s)	150 mA	TLS715B0	1 - Single	Fully Populated	4 V	40 V	5 V	Positive Fixed
Infineon Technologies TLS715B0NAV50XTSA1			150 mA								80 µA	1.81 mOhm	Positive	Over Current Over Temperature	Automotive	1	5 V	60 dB	AEC-Q100	PG-TSNP-7-8	0.18 V	Surface Mount	150 °C	-40 °C	Enable	5 µA
Infineon Technologies TLS715B0TSNPBOARDTOBO1	Board(s)		150 mA	TLS715B0NAV50	1 - Single	Fully Populated	4 V	40 V	5 V	Positive Fixed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA PG-TSNP-7-8
