TLS715B0TSNPBOARDTOBO1

Active

Infineon Technologies

DEVELOPMENT BOARDS &AMP; KITS ROHS

Search across all available documentation for this part.

Active

Infineon Technologies

DEVELOPMENT BOARDS &AMP; KITS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Contents	Current - Output	Utilized IC / Part	Channels per IC	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Regulator Type	Current - Supply (Max) [Max]	Output Type	Output Configuration	Protection Features	Grade	Number of Regulators	Voltage - Output (Min/Fixed)	PSRR	Qualification	Supplier Device Package	Voltage Dropout (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Current - Quiescent (Iq)
Infineon Technologies TLS715B0EJV50BOARDTOBO1	Board(s)	Board(s)	150 mA	TLS715B0	1 - Single	Fully Populated	4 V	40 V	5 V	Positive Fixed
Infineon Technologies TLS715B0NAV50XTSA1			150 mA								80 µA	1.81 mOhm	Positive	Over Current Over Temperature	Automotive	1	5 V	60 dB	AEC-Q100	PG-TSNP-7-8	0.18 V	Surface Mount	150 °C	-40 °C	Enable	5 µA
Infineon Technologies TLS715B0TSNPBOARDTOBO1	Board(s)		150 mA	TLS715B0NAV50	1 - Single	Fully Populated	4 V	40 V	5 V	Positive Fixed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 28.80
LCSC	N/A	1	$ 0.00

General part information

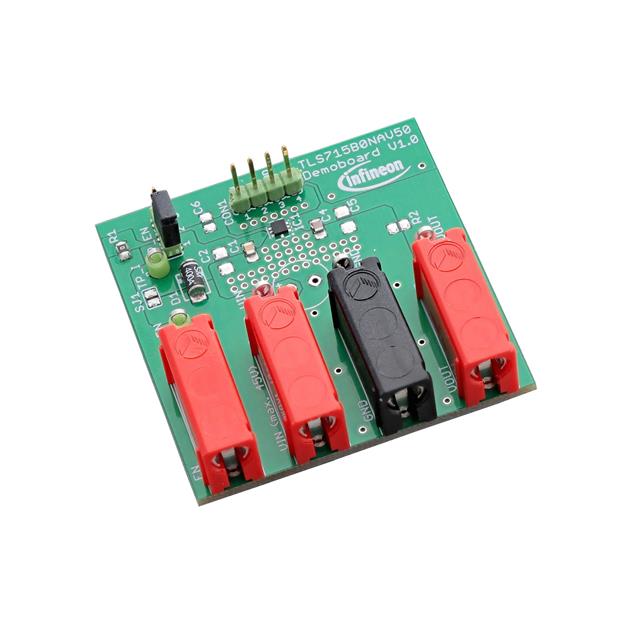

TLS715B0NAV50 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board

Technical documentation and resources

No documents available
