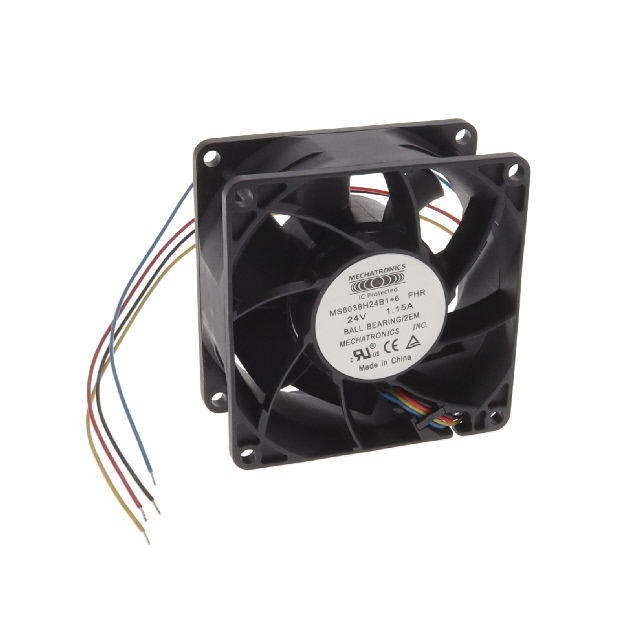

MS8038H24B1+6-FHR-2EM
ActiveMechatronics Bearing Group
FAN AXIAL 80X38MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
MS8038H24B1+6-FHR-2EM
ActiveMechatronics Bearing Group
FAN AXIAL 80X38MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS8038H24B1+6-FHR-2EM |
|---|---|
| Air Flow | 3.37 mł/min |
| Air Flow | 120.5 CFM |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.07 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach), PWM Control |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 77 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| RPM | 10000 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Static Pressure | 385 Pa |
| Static Pressure | 1.55 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 0.391 lb |
| Weight | 177.35 g |
| Width [y] | 38 mm |
MS8038 Series
| Part | Width [y] | Material - Frame | Weight | Weight | Current Rating (Amps) | Noise | Static Pressure | Static Pressure | Termination | Bearing Type | Size / Dimension [y] | Size / Dimension [x] | Features | Air Flow | Air Flow | Material - Blade | Voltage - Rated [custom] | RPM | Fan Type | Voltage - Rated | Air Flow | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 0.51 A | 77 dB | 385 Pa | 1.55 in H2O | 2 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart | 3.37 mł/min | 120.5 CFM | Plastic | 48 VDC | 10000 RPM | Tubeaxial | |||||||
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 0.72 A | 62 dB(A) | 303.9 Pa | 1.22 in H2O | 4 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart PWM Control Speed Sensor (Tach) | 3.06 m³/min | Plastic | 8000 RPM | Tubeaxial | 24 VDC | 109.2 CFM | IP68 - Dust Tight Waterproof | ||||||
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 2.24 A | 62 dB(A) | 385 Pa | 1.55 in H2O | 2 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart | 3.37 mł/min | 120.5 CFM | Plastic | 9000 RPM | Tubeaxial | 12 VDC | |||||||
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 0.51 A | 77 dB | 385 Pa | 1.55 in H2O | 4 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart PWM Control Speed Sensor (Tach) | 3.37 mł/min | 120.5 CFM | Plastic | 48 VDC | 10000 RPM | Tubeaxial | |||||||
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 0.51 A | 77 dB | 385 Pa | 1.55 in H2O | 4 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart PWM Control Speed Sensor (Tach) | 3.37 mł/min | 120.5 CFM | Plastic | 48 VDC | 10000 RPM | Tubeaxial | IP68 - Dust Tight Waterproof | ||||||
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 0.34 A | 62 dB(A) | 303.9 Pa | 1.22 in H2O | 2 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart | 3.06 m³/min | Plastic | 48 VDC | 8000 RPM | Tubeaxial | 109.2 CFM | IP68 - Dust Tight Waterproof | ||||||
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 1.07 A | 77 dB | 385 Pa | 1.55 in H2O | 4 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart PWM Control Speed Sensor (Tach) | 3.37 mł/min | 120.5 CFM | Plastic | 10000 RPM | Tubeaxial | 24 VDC | IP68 - Dust Tight Waterproof | 70 °C | 70 °C | -10 °C | -10 °C | ||
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 140 mA | 50 dB(A) | 184.3 Pa | 0.74 in H2O | 2 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart | 2.26 m³/min | 80.7 CFM | Plastic | 48 VDC | 6000 RPM | Tubeaxial | IP68 - Dust Tight Waterproof | ||||||
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 0.51 A | 77 dB | 385 Pa | 1.55 in H2O | 2 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart | 3.37 mł/min | 120.5 CFM | Plastic | 48 VDC | 10000 RPM | Tubeaxial | IP68 - Dust Tight Waterproof | ||||||
Mechatronics Bearing Group | 38 mm | Plastic | 0.391 lb | 177.35 g | 1.07 A | 77 dB | 385 Pa | 1.55 in H2O | 4 Wire Leads | Ball | 80 mm | 80 mm | Auto Restart PWM Control Speed Sensor (Tach) | 3.37 mł/min | 120.5 CFM | Plastic | 10000 RPM | Tubeaxial | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.61 | |
| 10 | $ 27.05 | |||
| 25 | $ 26.02 | |||
| 50 | $ 24.31 | |||
| 100 | $ 22.42 | |||
| 250 | $ 22.08 | |||
Description
General part information
MS8038 Series
Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 120.5 CFM (3.37m³/min) 4 Wire Leads
