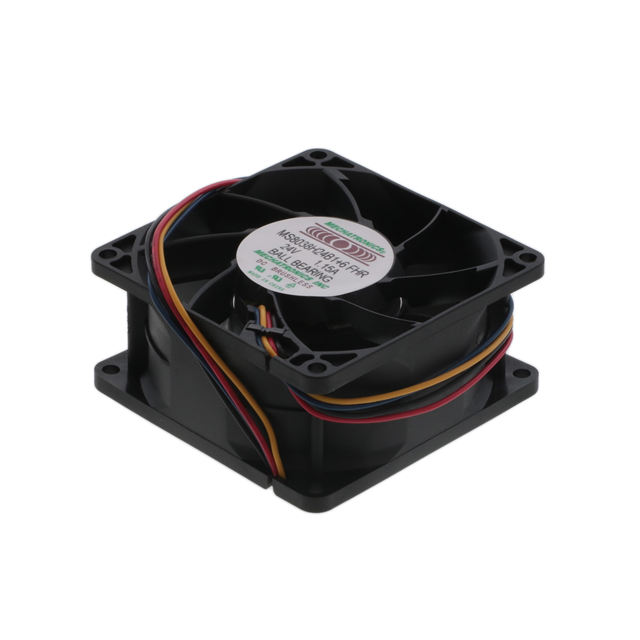

MS8038H24B1+6-FHR

Active

Mechatronics Bearing Group

FAN AXIAL 80X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Lead Wire Specs Datasheet

MS8038H24B1+6-FHR

Active

Mechatronics Bearing Group

FAN AXIAL 80X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDC Lead Wire Specs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS8038H24B1+6-FHR

Air Flow	3.37 mł/min
Air Flow	120.5 CFM
Bearing Type	Ball
Current Rating (Amps)	1.07 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Material - Blade	Plastic
Material - Frame	Plastic
Noise	77 dB
RPM	10000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	385 Pa
Static Pressure	1.55 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Weight	0.391 lb
Weight	177.35 g
Width [y]	38 mm

MS8038 Series

Part	Width [y]	Material - Frame	Weight	Weight	Current Rating (Amps)	Noise	Static Pressure	Static Pressure	Termination	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	Features	Air Flow	Air Flow	Material - Blade	Voltage - Rated [custom]	RPM	Fan Type	Voltage - Rated	Air Flow	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
Mechatronics Bearing Group MS8038H48B-FHR	38 mm	Plastic	0.391 lb	177.35 g	0.51 A	77 dB	385 Pa	1.55 in H2O	2 Wire Leads	Ball	80 mm	80 mm	Auto Restart	3.37 mł/min	120.5 CFM	Plastic	48 VDC	10000 RPM	Tubeaxial
Mechatronics Bearing Group MS8038M24B1+6-FHR-2EM	38 mm	Plastic	0.391 lb	177.35 g	0.72 A	62 dB(A)	303.9 Pa	1.22 in H2O	4 Wire Leads	Ball	80 mm	80 mm	Auto Restart PWM Control Speed Sensor (Tach)	3.06 m³/min		Plastic		8000 RPM	Tubeaxial	24 VDC	109.2 CFM	IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS8038H12B-FHR	38 mm	Plastic	0.391 lb	177.35 g	2.24 A	62 dB(A)	385 Pa	1.55 in H2O	2 Wire Leads	Ball	80 mm	80 mm	Auto Restart	3.37 mł/min	120.5 CFM	Plastic		9000 RPM	Tubeaxial	12 VDC
Mechatronics Bearing Group MS8038H48B1+6-FHR	38 mm	Plastic	0.391 lb	177.35 g	0.51 A	77 dB	385 Pa	1.55 in H2O	4 Wire Leads	Ball	80 mm	80 mm	Auto Restart PWM Control Speed Sensor (Tach)	3.37 mł/min	120.5 CFM	Plastic	48 VDC	10000 RPM	Tubeaxial
Mechatronics Bearing Group MS8038H48B1+6-FHR-2EM	38 mm	Plastic	0.391 lb	177.35 g	0.51 A	77 dB	385 Pa	1.55 in H2O	4 Wire Leads	Ball	80 mm	80 mm	Auto Restart PWM Control Speed Sensor (Tach)	3.37 mł/min	120.5 CFM	Plastic	48 VDC	10000 RPM	Tubeaxial			IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS8038M48B-FHR-2EM	38 mm	Plastic	0.391 lb	177.35 g	0.34 A	62 dB(A)	303.9 Pa	1.22 in H2O	2 Wire Leads	Ball	80 mm	80 mm	Auto Restart	3.06 m³/min		Plastic	48 VDC	8000 RPM	Tubeaxial		109.2 CFM	IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS8038H24B1+6-FHR-2EM	38 mm	Plastic	0.391 lb	177.35 g	1.07 A	77 dB	385 Pa	1.55 in H2O	4 Wire Leads	Ball	80 mm	80 mm	Auto Restart PWM Control Speed Sensor (Tach)	3.37 mł/min	120.5 CFM	Plastic		10000 RPM	Tubeaxial	24 VDC		IP68 - Dust Tight Waterproof	70 °C	70 °C	-10 °C	-10 °C
Mechatronics Bearing Group MS8038L48B-FHR-2EM	38 mm	Plastic	0.391 lb	177.35 g	140 mA	50 dB(A)	184.3 Pa	0.74 in H2O	2 Wire Leads	Ball	80 mm	80 mm	Auto Restart	2.26 m³/min	80.7 CFM	Plastic	48 VDC	6000 RPM	Tubeaxial			IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS8038H48B-FHR-2EM	38 mm	Plastic	0.391 lb	177.35 g	0.51 A	77 dB	385 Pa	1.55 in H2O	2 Wire Leads	Ball	80 mm	80 mm	Auto Restart	3.37 mł/min	120.5 CFM	Plastic	48 VDC	10000 RPM	Tubeaxial			IP68 - Dust Tight Waterproof
Mechatronics Bearing Group MS8038H24B1+6-FHR	38 mm	Plastic	0.391 lb	177.35 g	1.07 A	77 dB	385 Pa	1.55 in H2O	4 Wire Leads	Ball	80 mm	80 mm	Auto Restart PWM Control Speed Sensor (Tach)	3.37 mł/min	120.5 CFM	Plastic		10000 RPM	Tubeaxial	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.01
		10	$ 21.93
		25	$ 21.09
		50	$ 19.71
		100	$ 18.18
		250	$ 17.90
		500	$ 17.76

Description

General part information

MS8038 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 120.5 CFM (3.37m³/min) 4 Wire Leads
