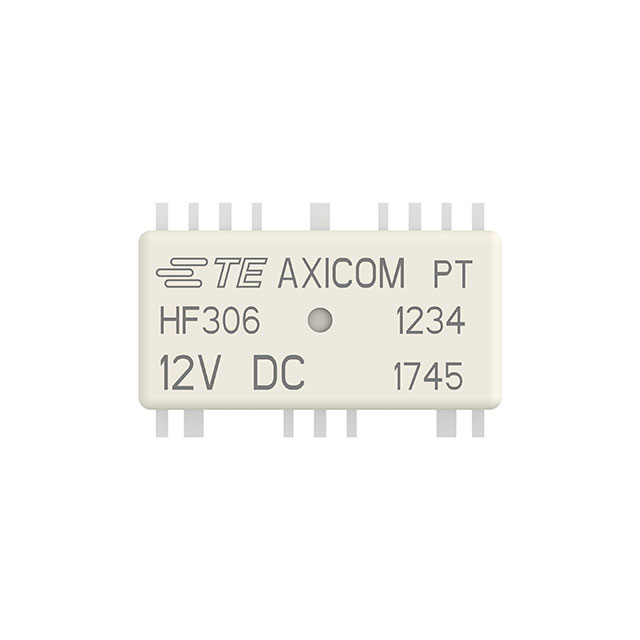

1462050-4
ActiveTE Connectivity Potter & Brumfield Relays
RELAY RF SPDT 2A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1462050-4
ActiveTE Connectivity Potter & Brumfield Relays
RELAY RF SPDT 2A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1462050-4 |
|---|---|
| Coil Current | 11.7 mA |
| Coil Resistance | 1030 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 2 A |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 5 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Release Time | 4 ms |
| Switching Voltage | 250 VAC, 220 VDC |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 18.27 | |
| 10 | $ 16.24 | |||
| 25 | $ 15.43 | |||
| 50 | $ 14.62 | |||
| 100 | $ 13.80 | |||
| Digi-Reel® | 1 | $ 18.27 | ||
| 10 | $ 16.24 | |||
| 25 | $ 15.43 | |||
| 50 | $ 14.62 | |||
| 100 | $ 13.80 | |||
| Tape & Reel (TR) | 400 | $ 12.59 | ||
| 800 | $ 11.77 | |||
Description
General part information
1462050 Series
RELAY RF SPDT 2A 12V
Documents
Technical documentation and resources
