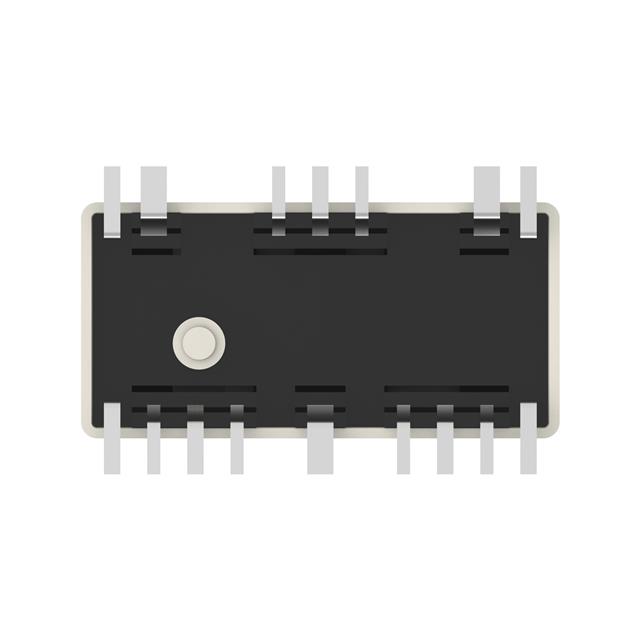

1-1462050-5

Active

TE Connectivity Potter & Brumfield Relays

RELAY RF SPDT 2A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY RF SPDT 2A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Coil Type	Coil Resistance	Operate Time	Release Time	Contact Form	Must Operate Voltage	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Contact Material	Mounting Type	Coil Voltage	Coil Current	Must Release Voltage
TE Connectivity Potter & Brumfield Relays 1-1462050-4	Gull Wing	Latching Dual Coil	1030 Ohms	5 ms	5 ms	SPDT (1 Form C)	9 VDC	2 A	85 °C	-55 °C	220 VDC 250 VAC	Gold (Au) Silver (Ag)	Surface Mount	12 VDC	11.7 mA
TE Connectivity Potter & Brumfield Relays 1462050-4	Gull Wing	Non Latching	1030 Ohms	5 ms	4 ms	SPDT (1 Form C)	9 VDC	2 A	85 °C	-55 °C	220 VDC 250 VAC	Gold (Au) Silver (Ag)	Surface Mount	12 VDC	11.7 mA	1.2 VDC
TE Connectivity Potter & Brumfield Relays 3-1462050-6	Gull Wing	Latching Dual Coil	1030 Ohms	5 ms	5 ms	SPDT (1 Form C)	9 VDC	2 A	85 °C	-55 °C	220 VDC 250 VAC	Gold (Au) Silver (Ag)	Surface Mount	12 VDC	11.7 mA
TE Connectivity Potter & Brumfield Relays 1-1462050-5	Gull Wing	Latching Dual Coil	4.11 kOhms	5 ms	5 ms	SPDT (1 Form C)	18 VDC	2 A	85 °C	-55 °C	220 VDC 250 VAC	Gold (Au) Silver (Ag)	Surface Mount	24 VDC	5.8 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	800	$ 14.38

General part information

RELAY RF SPDT 2A 24V
