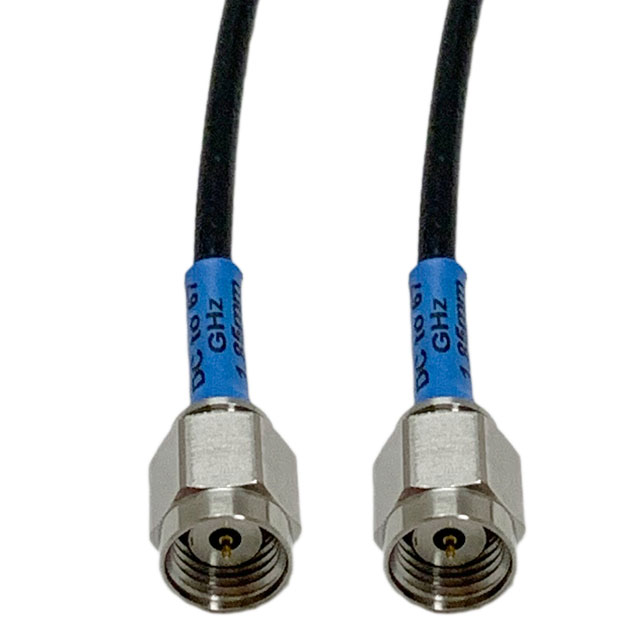

LSA61-B1B1-S18
ActiveConductRF
CBL ASSY 1.85MM PLUG TO PLUG 18"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LSA61-B1B1-S18
ActiveConductRF
CBL ASSY 1.85MM PLUG TO PLUG 18"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LSA61-B1B1-S18 |
|---|---|
| 1st Connector | 1.85mm Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | 2.18mm OD Coaxial Cable |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 67 GHz |
| Length [x] | 457.2 mm |
| Length [x] | 457.2 mm |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style [Max] | 1.85 mm |
| Style [Min] | 1.85 mm |
LSA61 Series
| Part | Cable Type | Connector Impedance | Length | Length | Features | Color | 2nd Connector Mounting Type | 2nd Contact Gender | 1st Connector | Operating Temperature [Min] | Operating Temperature [Max] | Overall Impedance | Frequency - Max [Max] | Style [Max] | Style [Min] | 1st Contact Gender | 1st Connector Mounting Type | 2nd Connector | Length [x] | Length [x] | 2nd Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ConductRF | 2.18mm OD Coaxial Cable | 50 Ohms | 152.4 mm | 6 in | Shielded | Black | Free Hanging (In-Line) | Male | 1.85mm Plug | -65 ░C | 105 ░C | 50 Ohms | 67 GHz | 1.85 mm | 1.85 mm | Male | Free Hanging (In-Line) | ||||
ConductRF | 2.18mm OD Coaxial Cable | 50 Ohms | Shielded | Black | Free Hanging (In-Line) | Male | 2.4mm Plug | -65 ░C | 105 ░C | 50 Ohms | 50 GHz | 2.4 mm | 2.4 mm | Male | Free Hanging (In-Line) | 2.4mm Plug | 457.2 mm | 457.2 mm | |||
ConductRF | 2.18mm OD Coaxial Cable | 50 Ohms | 152.4 mm | 6 in | Shielded | Black | Free Hanging (In-Line) | Male | 2.92mm Plug | -65 ░C | 105 ░C | 50 Ohms | 40 GHz | 2.92 mm | 2.92 mm | Male | Free Hanging (In-Line) | 2.92 mm | |||
ConductRF | 2.18mm OD Coaxial Cable | 50 Ohms | 304.8 mm | 12 " | Shielded | Black | Free Hanging (In-Line) | Male | 2.4mm Plug | -65 ░C | 105 ░C | 50 Ohms | 50 GHz | 2.4 mm | 2.4 mm | Male | Free Hanging (In-Line) | 2.4mm Plug | |||
ConductRF | 2.18mm OD Coaxial Cable | 50 Ohms | Shielded | Black | Free Hanging (In-Line) | Male | 1.85mm Plug | -65 ░C | 105 ░C | 50 Ohms | 67 GHz | 1.85 mm | 1.85 mm | Male | Free Hanging (In-Line) | 457.2 mm | 457.2 mm | ||||
ConductRF | 2.18mm OD Coaxial Cable | 50 Ohms | 304.8 mm | 12 " | Shielded | Black | Free Hanging (In-Line) | Male | 1.85mm Plug | -65 ░C | 105 ░C | 50 Ohms | 67 GHz | 1.85 mm | 1.85 mm | Male | Free Hanging (In-Line) | ||||
ConductRF | 2.18mm OD Coaxial Cable | 50 Ohms | 152.4 mm | 6 in | Shielded | Black | Free Hanging (In-Line) | Male | 2.4mm Plug | -65 ░C | 105 ░C | 50 Ohms | 50 GHz | 2.4 mm | 2.4 mm | Male | Free Hanging (In-Line) | 2.4mm Plug | |||
ConductRF | 2.18mm OD Coaxial Cable | 50 Ohms | Shielded | Black | Free Hanging (In-Line) | Male | 2.92mm Plug | -65 ░C | 105 ░C | 50 Ohms | 40 GHz | 2.92 mm | 2.92 mm | Male | Free Hanging (In-Line) | 457.2 mm | 457.2 mm | 2.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 242.64 | |
| 5 | $ 229.88 | |||
| 10 | $ 218.38 | |||
| 25 | $ 198.53 | |||
| 50 | $ 181.99 | |||
| 100 | $ 174.71 | |||
| 250 | $ 167.99 | |||
| 500 | $ 161.76 | |||
| 1000 | $ 155.99 | |||
Description
General part information
LSA61 Series
Cable Assembly Coaxial 1.85mm to 1.85mm 2.18mm OD Coaxial Cable 18.00" (457.20mm)
Documents
Technical documentation and resources
