LSA61-D1D1-S06

Active

ConductRF

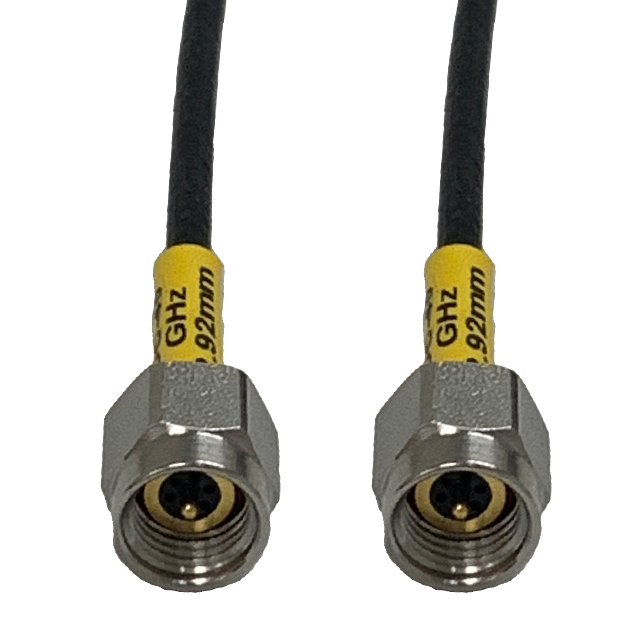

CBL ASSY 2.92MM PLUG TO PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSA61-D1D1-S06

Active

ConductRF

CBL ASSY 2.92MM PLUG TO PLUG 6"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSA61-D1D1-S06

1st Connector	2.92mm Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	2.92 mm
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	2.18mm OD Coaxial Cable
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	40 GHz
Length	152.4 mm
Length	6 in
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Overall Impedance	50 Ohms
Style [Max]	2.92 mm
Style [Min]	2.92 mm

LSA61 Series

Part	Cable Type	Connector Impedance	Length	Length	Features	Color	2nd Connector Mounting Type	2nd Contact Gender	1st Connector	Operating Temperature [Min]	Operating Temperature [Max]	Overall Impedance	Frequency - Max [Max]	Style [Max]	Style [Min]	1st Contact Gender	1st Connector Mounting Type	2nd Connector	Length [x]	Length [x]	2nd Connector
ConductRF LSA61-B1B1-S06	2.18mm OD Coaxial Cable	50 Ohms	152.4 mm	6 in	Shielded	Black	Free Hanging (In-Line)	Male	1.85mm Plug	-65 ░C	105 ░C	50 Ohms	67 GHz	1.85 mm	1.85 mm	Male	Free Hanging (In-Line)
ConductRF LSA61-C1C1-S18	2.18mm OD Coaxial Cable	50 Ohms			Shielded	Black	Free Hanging (In-Line)	Male	2.4mm Plug	-65 ░C	105 ░C	50 Ohms	50 GHz	2.4 mm	2.4 mm	Male	Free Hanging (In-Line)	2.4mm Plug	457.2 mm	457.2 mm
ConductRF LSA61-D1D1-S06	2.18mm OD Coaxial Cable	50 Ohms	152.4 mm	6 in	Shielded	Black	Free Hanging (In-Line)	Male	2.92mm Plug	-65 ░C	105 ░C	50 Ohms	40 GHz	2.92 mm	2.92 mm	Male	Free Hanging (In-Line)				2.92 mm
ConductRF LSA61-C1C1-S12	2.18mm OD Coaxial Cable	50 Ohms	304.8 mm	12 "	Shielded	Black	Free Hanging (In-Line)	Male	2.4mm Plug	-65 ░C	105 ░C	50 Ohms	50 GHz	2.4 mm	2.4 mm	Male	Free Hanging (In-Line)	2.4mm Plug
ConductRF LSA61-B1B1-S18	2.18mm OD Coaxial Cable	50 Ohms			Shielded	Black	Free Hanging (In-Line)	Male	1.85mm Plug	-65 ░C	105 ░C	50 Ohms	67 GHz	1.85 mm	1.85 mm	Male	Free Hanging (In-Line)		457.2 mm	457.2 mm
ConductRF LSA61-B1B1-S12	2.18mm OD Coaxial Cable	50 Ohms	304.8 mm	12 "	Shielded	Black	Free Hanging (In-Line)	Male	1.85mm Plug	-65 ░C	105 ░C	50 Ohms	67 GHz	1.85 mm	1.85 mm	Male	Free Hanging (In-Line)
ConductRF LSA61-C1C1-S06	2.18mm OD Coaxial Cable	50 Ohms	152.4 mm	6 in	Shielded	Black	Free Hanging (In-Line)	Male	2.4mm Plug	-65 ░C	105 ░C	50 Ohms	50 GHz	2.4 mm	2.4 mm	Male	Free Hanging (In-Line)	2.4mm Plug
ConductRF LSA61-D1D1-S18	2.18mm OD Coaxial Cable	50 Ohms			Shielded	Black	Free Hanging (In-Line)	Male	2.92mm Plug	-65 ░C	105 ░C	50 Ohms	40 GHz	2.92 mm	2.92 mm	Male	Free Hanging (In-Line)		457.2 mm	457.2 mm	2.92 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 117.73
		5	$ 111.53
		10	$ 105.96
		25	$ 96.33
		50	$ 88.29
		100	$ 84.77
		250	$ 81.50
		500	$ 78.49
		1000	$ 75.68

Description

General part information

LSA61 Series

Cable Assembly Coaxial 2.92mm to 2.92mm 2.18mm OD Coaxial Cable 6.000" (152.40mm)
