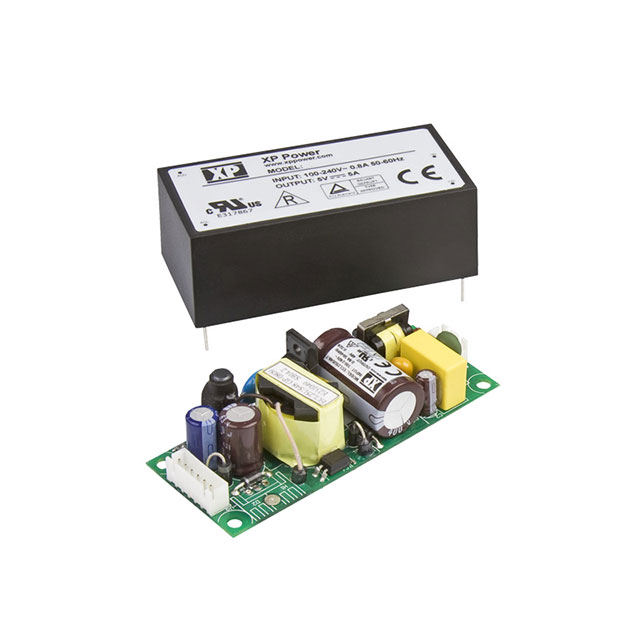

ECL10US03-T
ActiveXP POWER
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 8.6 W, 85V AC TO 264V AC, ADJUSTABLE, FIXED, 3.3 V
Deep-Dive with AI
Search across all available documentation for this part.
ECL10US03-T
ActiveXP POWER
AC/DC OPEN FRAME POWER SUPPLY (PSU), 1 OUTPUT, 8.6 W, 85V AC TO 264V AC, ADJUSTABLE, FIXED, 3.3 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECL10US03-T |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 2.6 A |
| Efficiency | 72 % |
| Features | Universal Input, Adjustable Output, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 87.9 mm |
| Size / Dimension [x] | 3.46 " |
| Size / Dimension [y] | 1.36 " |
| Size / Dimension [y] | 34.6 mm |
| Size / Dimension [z] | 22.4 mm |
| Size / Dimension [z] | 0.88 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ECL10 Series
Open Frame AC DC Converters 1 Output 3.3V 85 ~ 264 VAC Input
