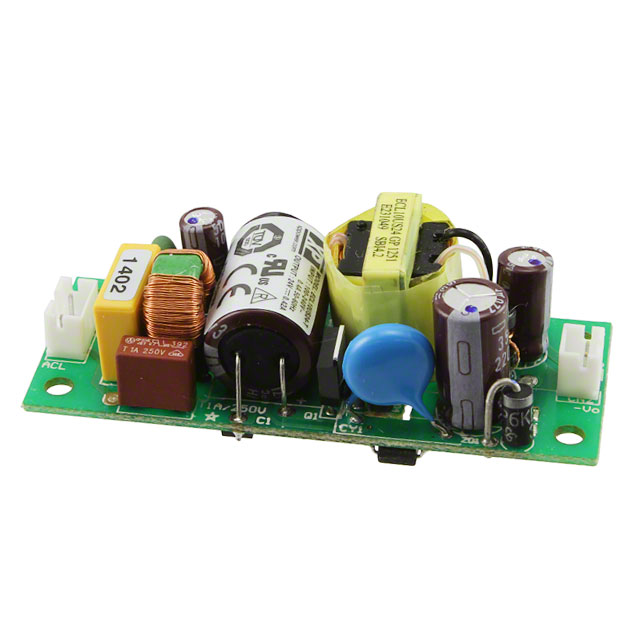

ECL10US24-T

Active

XP POWER

AC/DC CONVERTER 24V 10W

Search across all available documentation for this part.

Active

XP POWER

AC/DC CONVERTER 24V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	ECL10US24-T

Applications	ITE (Commercial)
Current - Output 1	420 mA
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	10 W
Size / Dimension [x]	87.9 mm
Size / Dimension [x]	3.46 "
Size / Dimension [y]	1.36 "
Size / Dimension [y]	34.6 mm
Size / Dimension [z]	22.4 mm
Size / Dimension [z]	0.88 in
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Current - Output 1	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Voltage - Isolation	Standard Number	Applications	Power (Watts)	Efficiency
XP POWER ECL10US24-T	420 mA	24 V	87.9 mm	1.36 "	3.46 "	22.4 mm	0.88 in	34.6 mm	1	Adjustable Output DC Input Capable Universal Input	Chassis Mount	-20 °C	70 °C	Open Frame	3000 V	62368-1	ITE (Commercial)	10 W
XP POWER ECL10US09-T	1.1 A	9 V	87.9 mm	1.36 "	3.46 "	22.4 mm	0.88 in	34.6 mm	1	Adjustable Output DC Input Capable Universal Input	Chassis Mount	-20 °C	70 °C	Open Frame	3000 V	62368-1	ITE (Commercial)	10 W	78 %
XP POWER ECL10US03-T	2.6 A	3.3 V	87.9 mm	1.36 "	3.46 "	22.4 mm	0.88 in	34.6 mm	1	Adjustable Output DC Input Capable Universal Input	Chassis Mount	-20 °C	70 °C	Open Frame	3000 V	62368-1	ITE (Commercial)	10 W	72 %
