173-E09-213R001 - 173-E09-213R001

173-E09-213R001

Active
MH Connectors

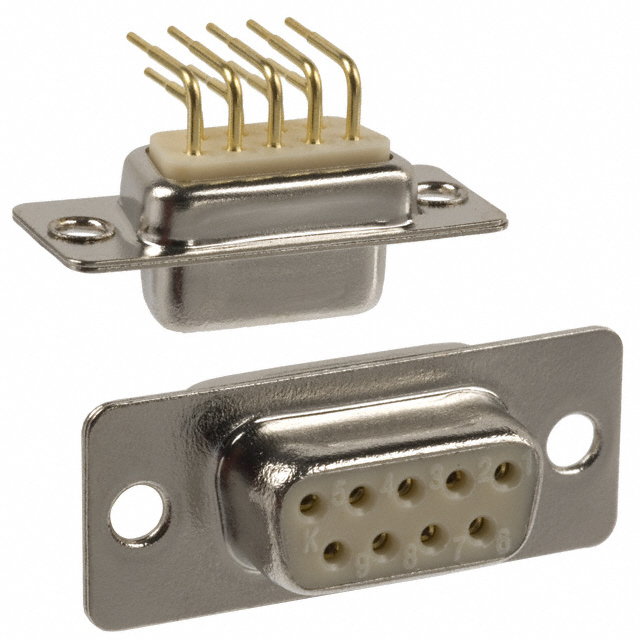

D SUB CONNECTOR, DB9, RECEPTACLE, 173-E M SERIES, 9 CONTACTS, DE, THROUGH HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetBackshell Reference Guide+5
173-E09-213R001 - 173-E09-213R001

173-E09-213R001

Active
MH Connectors

D SUB CONNECTOR, DB9, RECEPTACLE, 173-E M SERIES, 9 CONTACTS, DE, THROUGH HOLE

Deep-Dive with AI

DocumentsDatasheetBackshell Reference Guide+5

Technical Specifications

Parameters and characteristics for this part

Specification173-E09-213R001
Backset Spacing0.283 in
Backset Spacing7.2 mm
ColorWhite
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
Flange FeatureHousing/Shell (Unthreaded)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions9
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 6.28
10$ 5.68
25$ 5.36
40$ 5.23
110$ 4.97
330$ 4.45
440$ 4.19
990$ 3.66
2420$ 3.48
NewarkEach 500$ 4.51
1000$ 3.84
5000$ 3.45

Description

General part information

173-E09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
