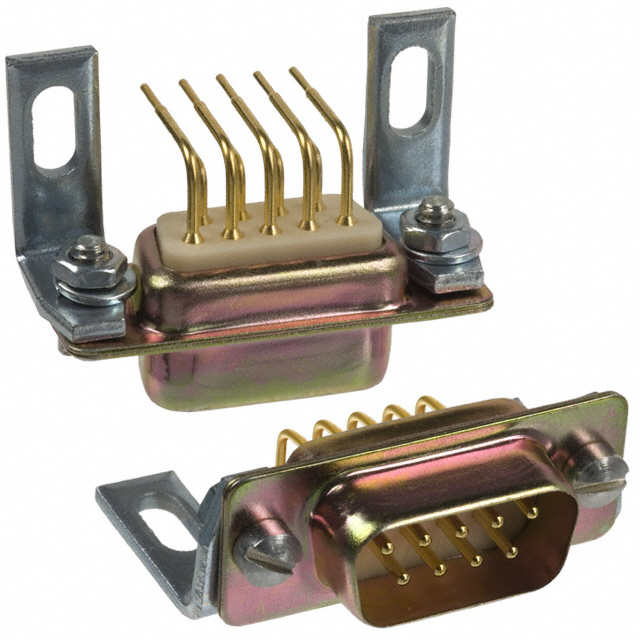

173-E09-111R241

Obsolete

MH Connectors

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide

173-E09-111R241

Obsolete

MH Connectors

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	173-E09-111R241

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	White
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Mounting Brackets
Flange Feature	Mating Side, Standard Screws (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Shell Material, Finish	Steel, Yellow Chromate Plated
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

173-E09 Series

Part	Contact Finish	Connector Style	Backset Spacing	Backset Spacing	Contact Finish Thickness	Features	Contact Type	Contact Material	Mounting Type	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Number of Positions	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Flange Feature	Current Rating (Amps)	Material Flammability Rating	Connector Type	Color
MH Connectors 173-E09-213R461	Gold	D-Sub	0.283 in	7.2 mm	Flash	Board Lock Mounting Brackets	Signal	Copper	Through Hole Right Angle	2	DE E	1	Solder	9	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Nickel Plated Steel	Housing/Shell (4-40)	5 A	UL94 V-0	Receptacle Female Sockets	White
MH Connectors 173-E09-213R141	Gold	D-Sub	0.283 in	7.2 mm	Flash	Mounting Brackets	Signal	Copper	Through Hole Right Angle	2	DE E	1	Solder	9	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	5 A	UL94 V-0	Receptacle Female Sockets	White
MH Connectors 173-E09-213R001	Gold	D-Sub	0.283 in	7.2 mm	Flash		Signal	Copper	Through Hole Right Angle	2	DE E	1	Solder	9	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	Nickel Plated Steel	Housing/Shell (Unthreaded)	5 A	UL94 V-0	Receptacle Female Sockets	White
MH Connectors 173-E09-111-001	Gold	D-Sub	0.283 in	7.2 mm	Flash		Signal		Panel Mount Right Angle Through Hole	2	DE E	1	Solder	9	Polybutylene Terephthalate (PBT)			Steel Yellow Chromate Plated	Housing/Shell (Unthreaded)	5 A	UL94 V-0	Male Pins Plug	White
MH Connectors 173-E09-112-141	Gold	D-Sub	0.283 in	7.2 mm	Flash	Grounding Indents Mounting Brackets	Signal	Brass	Panel Mount Right Angle Through Hole	2	DE E	1	Solder	9	Polybutylene Terephthalate (PBT)				Female Screwlock (4-40) Mating Side	5 A	UL94 V-0	Male Pins Plug	White
MH Connectors 173-E09-212-141	Gold	D-Sub	0.283 in	7.2 mm	Flash	Mounting Brackets	Signal		Panel Mount Right Angle Through Hole	2	DE E	1	Solder	9	Polybutylene Terephthalate (PBT)				Female Screwlock (4-40) Mating Side	5 A	UL94 V-0	Receptacle Female Sockets	White
MH Connectors 173-E09-211R001	Gold	D-Sub	0.283 in	7.2 mm	Flash		Signal		Panel Mount Right Angle Through Hole	2	DE E	1	Solder	9	Polyamide (PA6T) Nylon 6T			Steel Yellow Chromate Plated	Housing/Shell (Unthreaded)	5 A	UL94 V-0	Receptacle Female Sockets	White
MH Connectors 173-E09-211R141	Gold	D-Sub	0.283 in	7.2 mm	Flash	Mounting Brackets	Signal		Panel Mount Right Angle Through Hole	2	DE E	1	Solder	9	Polyamide (PA6T) Nylon 6T			Steel Yellow Chromate Plated	Female Screwlock (4-40) Mating Side	5 A	UL94 V-0	Receptacle Female Sockets	White
MH Connectors 173-E09-112-001	Gold	D-Sub	0.283 in	7.2 mm	Flash	Grounding Indents	Signal	Brass	Panel Mount Right Angle Through Hole	2	DE E	1	Solder	9	Polybutylene Terephthalate (PBT)				Housing/Shell (Unthreaded)	5 A	UL94 V-0	Male Pins Plug	White
MH Connectors 173-E09-111R241	Gold	D-Sub	0.283 in	7.2 mm	Flash	Mounting Brackets	Signal	Brass	Panel Mount Right Angle Through Hole	2	DE E	1	Solder	9	Polyamide (PA6T) Nylon 6T			Steel Yellow Chromate Plated	Mating Side Standard Screws (4-40)	5 A	UL94 V-0	Male Pins Plug	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

173-E09 Series

9 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Backshell Reference Guide

Datasheet
