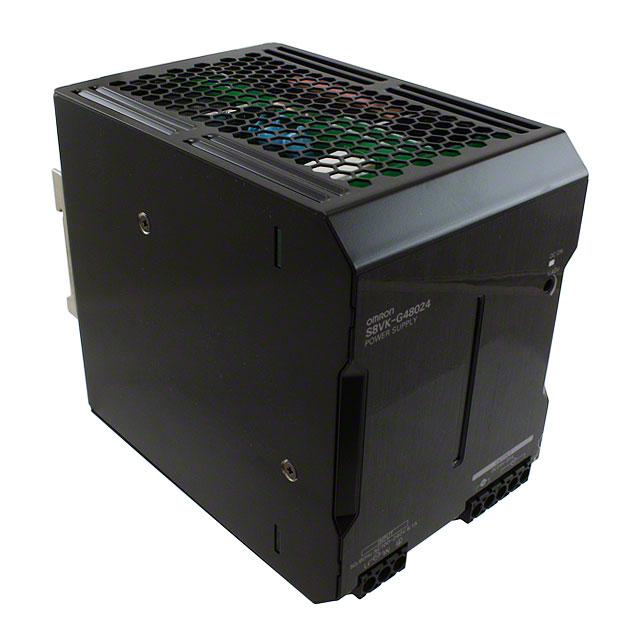

S8VK-G48024
ActiveOmron Electronics Inc-EMC Div
AC/DC DIN RAIL SUPPLY 24V 480W
Deep-Dive with AI
Search across all available documentation for this part.
S8VK-G48024
ActiveOmron Electronics Inc-EMC Div
AC/DC DIN RAIL SUPPLY 24V 480W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S8VK-G48024 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | cULus, VDE, CE, cURus |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 93 % |
| Features | Universal Input, Adjustable Output, Load Sharing |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 75 ¯C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 480 W |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [x] | 150 mm |
| Size / Dimension [y] | 95 mm |
| Size / Dimension [y] | 3.74 " |
| Size / Dimension [z] | 125 mm |
| Size / Dimension [z] | 4.92 in |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 260.81 | |
| 10 | $ 251.82 | |||
| 25 | $ 247.32 | |||
Description
General part information
S8VK-G480 Series
AC/DC DIN RAIL SUPPLY 24V 480W
