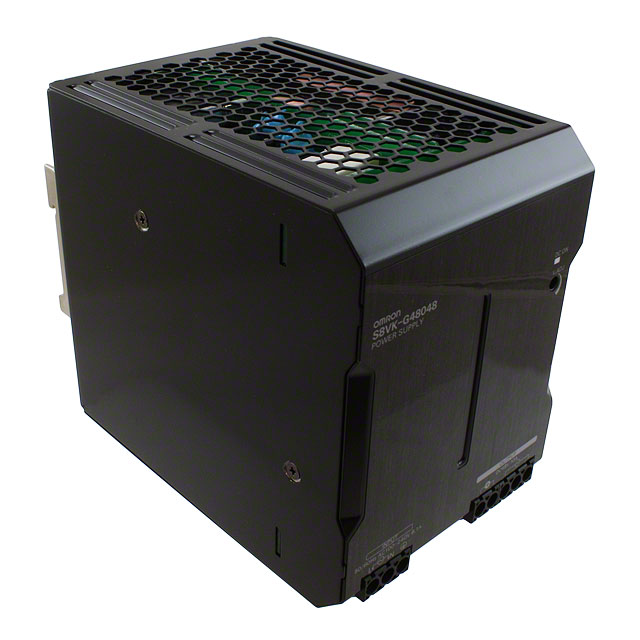

S8VK-G48048

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 48V 480W

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

AC/DC DIN RAIL SUPPLY 48V 480W

Technical Specifications

Parameters and characteristics for this part

Specification	S8VK-G48048

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	cULus, VDE, CE, cURus
Current - Output (Max) [Max]	10 A
Efficiency	93 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Power (Watts)	480 W
Size / Dimension [x]	5.91 "
Size / Dimension [x]	150 mm
Size / Dimension [y]	95 mm
Size / Dimension [y]	3.74 "
Size / Dimension [z]	125 mm
Size / Dimension [z]	4.92 in
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Voltage - Isolation	Features	Power (Watts)	Current - Output (Max) [Max]	Approval Agency	Input Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]
Omron Electronics Inc-EMC Div S8VK-G48048-400	1	85 VAC	264 VAC	ITE (Commercial)	3000 V	Adjustable Output PFC Universal Input	480 W	10 A	CE cULus cURus TUV	AC	125 mm	5.91 "	95 mm	4.92 in	3.74 "	150 mm	93 %	48 V
Omron Electronics Inc-EMC Div S8VK-G48048	1	85 VAC	264 VAC	ITE (Commercial)	3000 V	Adjustable Output Load Sharing Universal Input	480 W	10 A	CE cULus cURus VDE	AC	125 mm	5.91 "	95 mm	4.92 in	3.74 "	150 mm	93 %	48 V	-40 °C	75 ¯C
Omron Electronics Inc-EMC Div S8VK-G48024	1	85 VAC	264 VAC	ITE (Commercial)	3000 V	Adjustable Output Load Sharing Universal Input	480 W	20 A	CE cULus cURus VDE	AC	125 mm	5.91 "	95 mm	4.92 in	3.74 "	150 mm	93 %	24 V	-40 °C	75 ¯C
Omron Electronics Inc-EMC Div S8VK-G48024-400	1	85 VAC	264 VAC	ITE (Commercial)	3000 V	Adjustable Output PFC Universal Input	480 W	20 A	CE cULus cURus TUV	AC	125 mm	5.91 "	95 mm	4.92 in	3.74 "	150 mm	93 %	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 48V 480W
