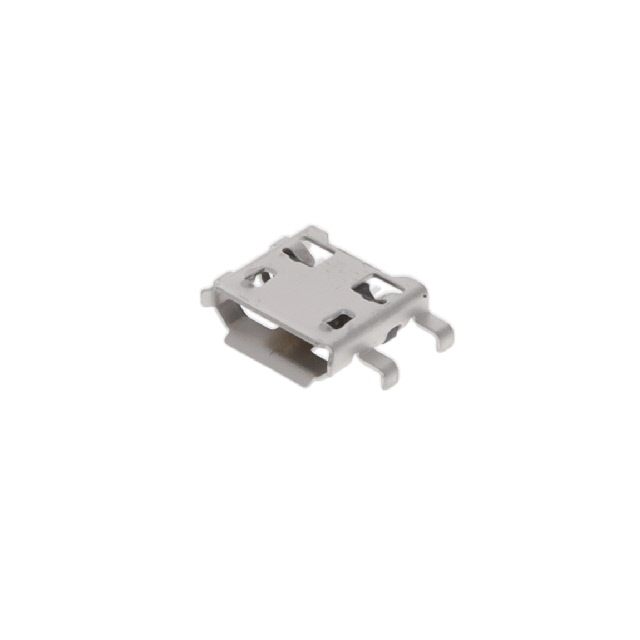

MCR-B-S-RA-SMT-EH4B-T/R

Active

Adam Tech

MICRO USB, TYPE B, RIGHT ANGLE,

Search across all available documentation for this part.

Active

Adam Tech

MICRO USB, TYPE B, RIGHT ANGLE,

Technical Specifications

Parameters and characteristics for this part

Specification	MCR-B-S-RA-SMT-EH4B-T/R

Connector Type	USB - micro B
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Horizontal, Mid Mount
Mounting Type	Right Angle, Through Hole, Surface Mount, Board Cutout
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Termination	Solder

Part	Termination	Number of Contacts	Features	Mounting Type	Material Flammability Rating	Contact Finish	Mounting Feature	Shell/Shielding Material	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Insulation Color	Shielding	Connector Type
Adam Tech MCR-B-S-RA-TSMT-NP-CS4-T/R	Solder	5	Solder Retention	Surface Mount Right Angle	UL94 V-0	Gold	Horizontal	Copper Alloy	1	-30 ░C	80 C	Receptacle	Black	Shielded	USB - micro B
Adam Tech MCR-B-S-RA-SMT-EH4B-T/R	Solder	5		Board Cutout Right Angle Surface Mount Through Hole	UL94 V-0	Gold	Horizontal Mid Mount	Copper Alloy	1	-30 ░C	80 C	Receptacle	Black	Shielded	USB - micro B
Adam Tech MCR-B-S-RA-SMT-NP-CS6B-T/R	Solder	5	Solder Retention	Surface Mount Right Angle	UL94 V-0	Gold	Horizontal	Copper Alloy	1	-30 ░C	80 C	Receptacle	Black	Shielded	USB - micro B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B Receptacle Connector 5 Position Board Cutout, Surface Mount, Right Angle; Through Hole
