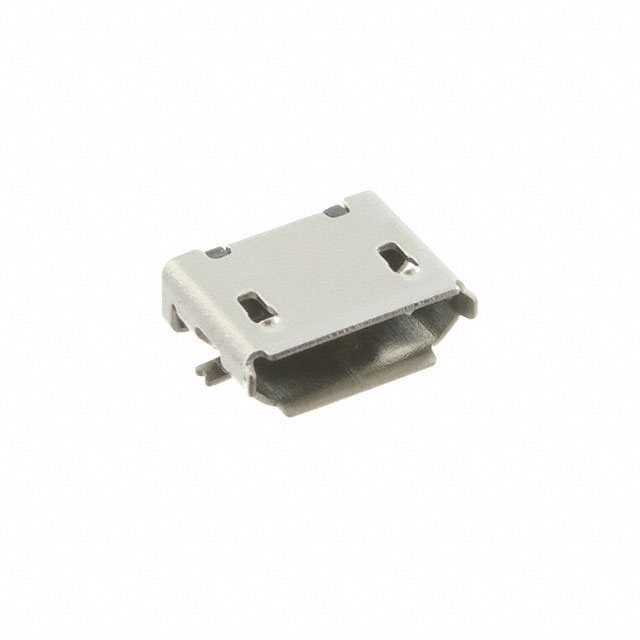

MCR-B-S-RA-TSMT-NP-CS4-T/R - MCR-B-S-RA-TSMT-NP-CS4-T/R

MCR-B-S-RA-TSMT-NP-CS4-T/R

Active
Adam Tech

MICRO USB, TYPE B, RIGHT ANGLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1
MCR-B-S-RA-TSMT-NP-CS4-T/R - MCR-B-S-RA-TSMT-NP-CS4-T/R

MCR-B-S-RA-TSMT-NP-CS4-T/R

Active
Adam Tech

MICRO USB, TYPE B, RIGHT ANGLE,

Deep-Dive with AI

DocumentsDatasheetECBT2-E224053 Data Connectors, Signal, Control, Power Applications+1

Technical Specifications

Parameters and characteristics for this part

SpecificationMCR-B-S-RA-TSMT-NP-CS4-T/R
Connector TypeUSB - micro B
Contact FinishGold
FeaturesSolder Retention
GenderReceptacle
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mounting FeatureHorizontal
Mounting TypeSurface Mount, Right Angle
Number of Contacts5
Number of Ports1
Operating Temperature [Max]80 C
Operating Temperature [Min]-30 ░C
Shell/Shielding MaterialCopper Alloy
ShieldingShielded
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.53
10$ 0.41
25$ 0.37
50$ 0.34
100$ 0.31
250$ 0.28
500$ 0.26
Digi-Reel® 1$ 0.53
10$ 0.41
25$ 0.37
50$ 0.34
100$ 0.31
250$ 0.28
500$ 0.26
Tape & Reel (TR) 1000$ 0.24
2000$ 0.22
3000$ 0.21
5000$ 0.20
7000$ 0.20
10000$ 0.19
25000$ 0.17
50000$ 0.17

Description

General part information

MCR-B-S-R Series

USB - micro B Receptacle Connector 5 Position Surface Mount, Right Angle
