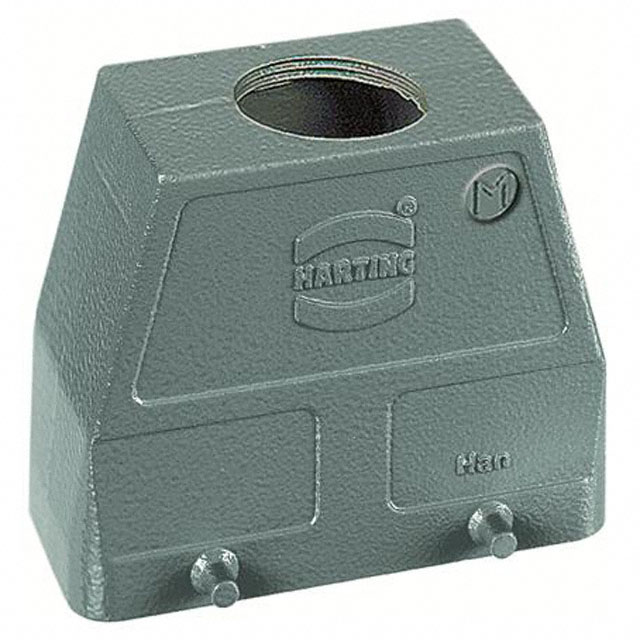

HEAVY DUTY CONNECTOR, M32 TOP ENTRY, 4 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19300100427 Prod Declaration Cert +1

19300100427

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M32 TOP ENTRY, 4 PEGS, HIGH PROFILE, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER

Deep-Dive with AI

DocumentsDatasheet 19300100427 Prod Declaration Cert +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19300100427

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	72.6 mm
Size / Dimension [x]	2.858 in
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	2.835 in
Size / Dimension [z]	72 mm
Style	Top Entry
Thread Size	M32

19300100 Series

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Color	Connector Type	Housing Finish	Lock Location	Size	Housing Material	Style	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19300100406	1.693 in	2.858 "	2.819 in	71.6 mm	43 mm	72.6 mm	M25	125 °C	-40 °C	IP65 IP66 IP67	Gray	Hood	Powder Coated	Locking Clip (2) on Base Bottom	10B	Aluminum Die Cast	Top Entry
HARTING Technology Group 19300100291	2.244 "	3.701 "	3.181 "	80.8 mm	57 mm	94 mm	M25	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Gray	Base - Box Mount	Powder Coated	Locking Clip (1) on Base Bottom	10B	Aluminum Die Cast	Side Entry	Feed Through
HARTING Technology Group 19300100738								125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Gray	Hood - Coupling	Powder Coated	Locking Clip (2) on Hood	10B	Aluminum Die Cast	Top Entry	Cable to Cable
HARTING Technology Group 19300100537				2.835 in	1.693 in	2.858 in	M32	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Gray	Hood	Powder Coated	Locking Clip (2) on Hood	10B	Aluminum Die Cast	Side Entry		72.6 mm	43 mm	72 mm
HARTING Technology Group 19300100526				2.835 in	1.693 in	2.858 in	M25	125 °C	-40 °C	IP65 IP66 IP67	Gray	Hood	Powder Coated	Locking Clip (2) on Base Bottom	10B	Aluminum Die Cast	Side Entry		72.6 mm	43 mm	72 mm
HARTING Technology Group 19300100271	2.244 "	3.701 "	3.181 "	80.8 mm	57 mm	94 mm	M25	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Gray	Base - Box Mount	Powder Coated	Locking Clip (2) on Base Bottom	10B	Aluminum Die Cast	Side Entry	Feed Through
HARTING Technology Group 19300100427				2.835 in	1.693 in	2.858 in	M32	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Gray	Hood	Powder Coated	Locking Clip (2) on Base Bottom	10B	Aluminum Die Cast	Top Entry		72.6 mm	43 mm	72 mm
HARTING Technology Group 19300100736	1.693 in	2.858 "	2.929 in	74.4 mm	43 mm	72.6 mm	M25	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Gray	Hood - Coupling	Powder Coated	Locking Clip (2) on Hood Top	10B	Aluminum Die Cast	Bottom Entry	Cable to Cable
HARTING Technology Group 19300100527				2.835 in	1.693 in	2.858 in	M32	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Gray	Hood	Powder Coated	Locking Clip (2) on Base Bottom	10B	Aluminum Die Cast	Side Entry		72.6 mm	43 mm	72 mm
HARTING Technology Group 19300100297	2.244 "	3.701 "	3.181 "	80.8 mm	57 mm	94 mm	M32	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Gray	Base - Box Mount	Powder Coated	Locking Clip (1) on Base Bottom	10B	Aluminum Die Cast	Side Entry
