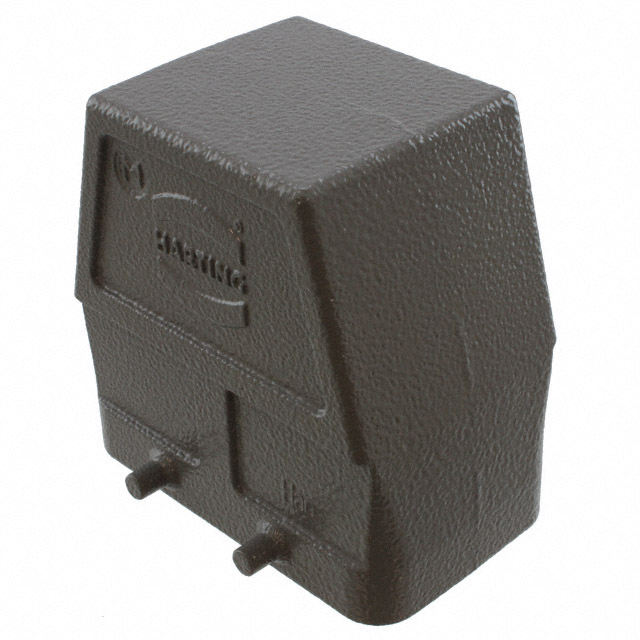

HEAVY DUTY CONNECTOR, M25, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER, 10B
Deep-Dive with AI
Search across all available documentation for this part.
19300100526
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, M25, HOOD, TOP ENTRY, ALUMINUM BODY, 2 LEVER, 10B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19300100526 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP66, IP67, IP65 |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10B |
| Size / Dimension [x] | 72.6 mm |
| Size / Dimension [x] | 2.858 in |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [y] | 1.693 in |
| Size / Dimension [z] | 2.835 in |
| Size / Dimension [z] | 72 mm |
| Style | Side Entry |
| Thread Size | M25 |
19300100 Series
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Housing Color | Connector Type | Housing Finish | Lock Location | Size | Housing Material | Style | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | 1.693 in | 2.858 " | 2.819 in | 71.6 mm | 43 mm | 72.6 mm | M25 | 125 °C | -40 °C | IP65 IP66 IP67 | Gray | Hood | Powder Coated | Locking Clip (2) on Base Bottom | 10B | Aluminum Die Cast | Top Entry | ||||
HARTING Technology Group | 2.244 " | 3.701 " | 3.181 " | 80.8 mm | 57 mm | 94 mm | M25 | 125 °C | -40 °C | IP65 - Dust Tight Water Resistant | Gray | Base - Box Mount | Powder Coated | Locking Clip (1) on Base Bottom | 10B | Aluminum Die Cast | Side Entry | Feed Through | |||
HARTING Technology Group | 125 °C | -40 °C | IP65 - Dust Tight Water Resistant | Gray | Hood - Coupling | Powder Coated | Locking Clip (2) on Hood | 10B | Aluminum Die Cast | Top Entry | Cable to Cable | ||||||||||
HARTING Technology Group | 2.835 in | 1.693 in | 2.858 in | M32 | 125 °C | -40 °C | IP65 - Dust Tight Water Resistant | Gray | Hood | Powder Coated | Locking Clip (2) on Hood | 10B | Aluminum Die Cast | Side Entry | 72.6 mm | 43 mm | 72 mm | ||||
HARTING Technology Group | 2.835 in | 1.693 in | 2.858 in | M25 | 125 °C | -40 °C | IP65 IP66 IP67 | Gray | Hood | Powder Coated | Locking Clip (2) on Base Bottom | 10B | Aluminum Die Cast | Side Entry | 72.6 mm | 43 mm | 72 mm | ||||
HARTING Technology Group | 2.244 " | 3.701 " | 3.181 " | 80.8 mm | 57 mm | 94 mm | M25 | 125 °C | -40 °C | IP65 - Dust Tight Water Resistant | Gray | Base - Box Mount | Powder Coated | Locking Clip (2) on Base Bottom | 10B | Aluminum Die Cast | Side Entry | Feed Through | |||
HARTING Technology Group | 2.835 in | 1.693 in | 2.858 in | M32 | 125 °C | -40 °C | IP65 - Dust Tight Water Resistant | Gray | Hood | Powder Coated | Locking Clip (2) on Base Bottom | 10B | Aluminum Die Cast | Top Entry | 72.6 mm | 43 mm | 72 mm | ||||
HARTING Technology Group | 1.693 in | 2.858 " | 2.929 in | 74.4 mm | 43 mm | 72.6 mm | M25 | 125 °C | -40 °C | IP65 - Dust Tight Water Resistant | Gray | Hood - Coupling | Powder Coated | Locking Clip (2) on Hood Top | 10B | Aluminum Die Cast | Bottom Entry | Cable to Cable | |||
HARTING Technology Group | 2.835 in | 1.693 in | 2.858 in | M32 | 125 °C | -40 °C | IP65 - Dust Tight Water Resistant | Gray | Hood | Powder Coated | Locking Clip (2) on Base Bottom | 10B | Aluminum Die Cast | Side Entry | 72.6 mm | 43 mm | 72 mm | ||||
HARTING Technology Group | 2.244 " | 3.701 " | 3.181 " | 80.8 mm | 57 mm | 94 mm | M32 | 125 °C | -40 °C | IP65 - Dust Tight Water Resistant | Gray | Base - Box Mount | Powder Coated | Locking Clip (1) on Base Bottom | 10B | Aluminum Die Cast | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19300100 Series
Hood Connector Side Entry M25 10B IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof
