ATS-53425K-C1-R0

Active

Advanced Thermal Solutions Inc.

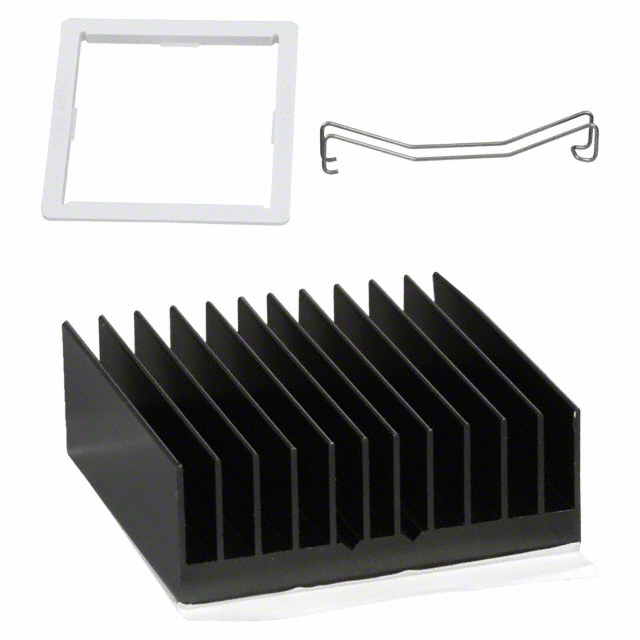

HEAT SINKS MAXIGRIP BGA HEAT SINK+ATTACHMENT, STRAIGHT, 2 SIDE TAPE, T412, 42.5X42.5X14.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsmaxiGRIP Clearance Guideline maxiGRIP Installation Guide +2

ATS-53425K-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS MAXIGRIP BGA HEAT SINK+ATTACHMENT, STRAIGHT, 2 SIDE TAPE, T412, 42.5X42.5X14.5MM

Deep-Dive with AI

DocumentsmaxiGRIP Clearance Guideline maxiGRIP Installation Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-53425K-C1-R0

Attachment Method	Clip, Thermal Material
Fin Height [z]	0.571 in
Fin Height [z]	14.5 mm
Length	42.5 mm
Length	1.673 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 4.3 °C/W
Type	Top Mount

ATS-531 Series

Heat Sinks maxiGRIP BGA Heat Sink w/Attachment, Straight Fin, Black, T766, 31x31x9.5mm

Part	Type	Attachment Method	Material	Thermal Resistance @ Forced Air Flow	Shape	Width [y]	Width [y]	Package Cooled	Material Finish	Fin Height	Fin Height	Length	Length	Fin Height [z]	Fin Height [z]	Length [x]	Length [x]	Width [x]	Width [x]	Width
Advanced Thermal Solutions Inc. ATS-53375R-C1-R0	Top Mount	Clip Thermal Material	Aluminum	3.5 °C/W	Fins Square	1.476 in	37.5 mm	BGA	Black Anodized	0.768 in	19.5 mm	37.5 mm	1.476 in
Advanced Thermal Solutions Inc. ATS-53425K-C1-R0	Top Mount	Clip Thermal Material	Aluminum	4.3 °C/W 200 LFM	Fins Square			BGA	Black Anodized			42.5 mm	1.673 in	0.571 in	14.5 mm
Advanced Thermal Solutions Inc. ATS-53230D-C1-R0	Top Mount	Clip Thermal Material	Aluminum	16.8 °C/W 200 LFM	Fins Square	0.906 in	23.01 mm	BGA	Black Anodized	0.374 in	9.5 mm					23 mm	0.9 in
Advanced Thermal Solutions Inc. ATS-53330R-C1-R0	Top Mount	Clip Thermal Material	Aluminum	4.1 °C/W 200 LFM	Fins Square			BGA	Black Anodized	0.768 in	19.5 mm	32.99 mm	1.299 in					32.99 mm	1.299 in
Advanced Thermal Solutions Inc. ATS-53450K-C1-R0	Top Mount	Clip Thermal Material	Aluminum	4.1 °C/W 200 LFM	Fins Square			BGA	Black Anodized			45 mm		0.571 in	14.5 mm		1.772 "		1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-53450R-C1-R0	Top Mount	Clip Thermal Material	Aluminum	2.8 °C/W 200 LFM	Fins Square			BGA	Black Anodized	0.768 in	19.5 mm	45 mm					1.772 "		1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-53325D-C1-R0	Top Mount	Clip Thermal Material	Aluminum	11.3 °C/W 200 LFM	Fins Square	1.28 in	32.51 mm	BGA	Black Anodized	0.374 in	9.5 mm	32.51 mm	1.28 in
Advanced Thermal Solutions Inc. ATS-53350R-C1-R0	Top Mount	Clip Thermal Material	Aluminum	3.8 °C/W 200 LFM	Fins Square			BGA	Black Anodized	0.768 in	19.5 mm					35 mm	1.378 in		1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-53190D-C1-R0	Top Mount	Clip Thermal Material	Aluminum	22 °C/W 200 LFM	Fins Square	0.748 in	19 mm	BGA	Black Anodized	0.374 in	9.5 mm	19 mm	0.748 in
Advanced Thermal Solutions Inc. ATS-53230K-C1-R0	Top Mount	Clip Thermal Material	Aluminum	8.8 °C/W 200 LFM	Fins Square	0.906 in	23.01 mm	BGA	Black Anodized					0.571 in	14.5 mm	23 mm	0.9 in
